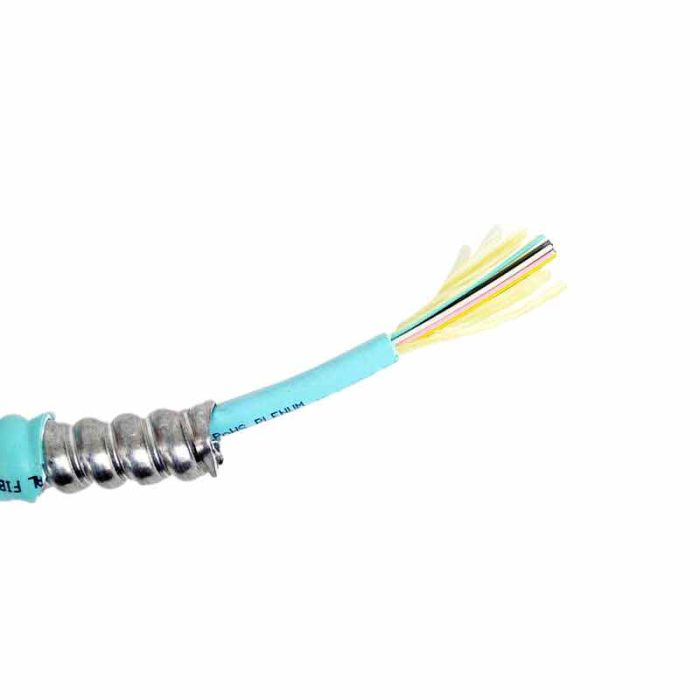

TLC Distribution Cable with Aluminum Interlocking Armor 6 Fiber ClearCurve Multimode 50/125um OM3 Plenum Aqua (per meter)

Overview

The TLC Distribution Cable is a robust, high-performance fiber optic solution designed for demanding indoor networking environments. Featuring 6 fibers of 50/125um OM3 ClearCurve multimode fiber, this cable is engineered for high-bandwidth applications, including data center backbones and enterprise network trunking.

This cable construction incorporates 900um tight-buffered fibers, which significantly simplify the termination process by eliminating the need for breakout kits. The cable is further protected by aluminum interlocking armor, providing enhanced physical protection against crushing and impact in high-traffic areas, while the plenum-rated jacket ensures compliance with stringent fire safety regulations for installation in air-handling spaces.

Key Features

• ClearCurve Multimode Fiber
  Features laser-optimized OM3 multimode fiber, providing enhanced macrobend performance for installation in tight spaces.
• Aluminum Interlocking Armor
  Provides superior mechanical protection for fiber strands in harsh environments without sacrificing cable flexibility.
• 900um Tight-Buffered Fibers
  Allows for direct termination of connectors onto individual fibers, reducing installation time and complexity.
• Plenum Rated
  Jacket construction meets NFPA 262 standards for use in plenum spaces, ensuring safety in air-handling environments.
• Easy Splicing
  Individual fibers are easily accessible for fusion splicing to backbone or trunk cables, facilitating efficient network expansion.
• 6-Fiber Configuration
  Compact design provides 6 distinct communication pathways in a single ruggedized cable assembly.

Applications

• Data center trunking and backbone cabling
• Enterprise LAN and WAN environments
• Plenum-rated pathways and air-handling spaces
• High-density networking where cable protection is critical
