Overview

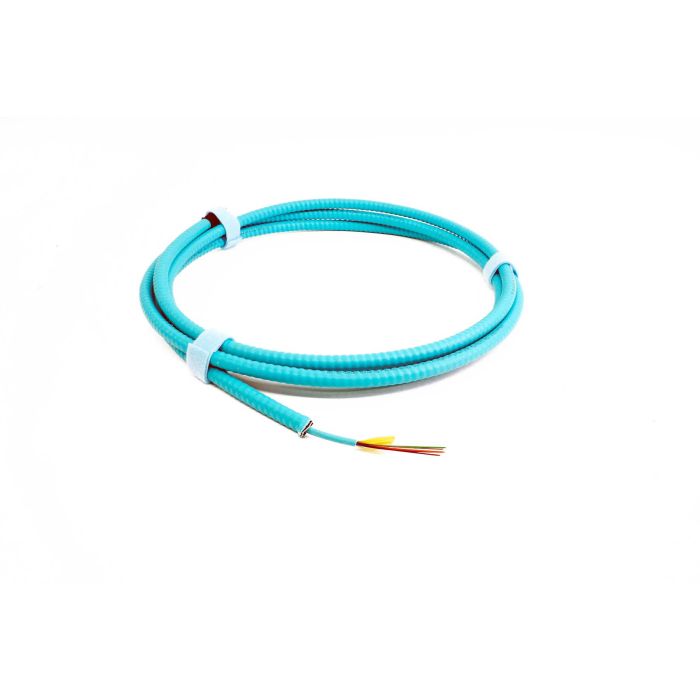

The TLC Distribution Cable with Aluminum Interlocking Armor is a robust optical solution designed for high-density environments where cable protection is paramount. Featuring 900um tight-buffered fibers, this cable simplifies installation by allowing direct termination of connectors and eliminating the need for complex breakout kits. Its design supports efficient fusion splicing to backbone or trunk systems.
Constructed with an aluminum interlocking armor layer, this cable provides superior crush resistance and physical protection against environmental hazards in indoor building infrastructures. The plenum-rated jacket ensures compliance with stringent fire safety regulations for use in air-handling spaces. With 6 optical fibers, this cable is intended for use in data centers, telecommunications closets, and enterprise network backbones requiring high-speed OM4 performance.
Key Features
-
Tight Buffered Construction
Features 900um tight-buffered fibers for faster, easier direct connector termination. -
Aluminum Interlocking Armor
Provides a rugged, flexible barrier against crushing and physical impact, suitable for demanding indoor environments. -
Plenum Jacket
Safety-rated for installation in air-handling plenums, meeting strict fire code requirements. -
OM4 Multimode Fiber
Optimized for 10 Gigabit networking, providing low attenuation and high bandwidth over long distances. -
Simplified Splicing
Allows for efficient fusion splicing to backbone cabling without the need for additional breakout hardware. -
Flexible Deployment
Designed for building backbone and horizontal distribution applications.
Applications
- Data Center Interconnects
- Enterprise Network Backbones
- Building Horizontal Distribution
- Telecommunications Closets
- Plenum Air-Handling Spaces
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 6 |
| Fiber Type | ClearCurve Multimode 50/125um OM4 |
| Jacket Rating | Plenum |
| Armor Type | Aluminum Interlocking Armor |
| Buffer Size | 900um |
Frequently Asked Questions
Is this cable suitable for outdoor use?
This specific cable is designed for indoor use. Please contact support for outdoor or indoor/outdoor rated options.
Do I need a breakout kit to terminate this cable?
No, the 900um tight-buffered construction allows for direct termination of connectors.
What is the purpose of the interlocking armor?
The armor provides added protection against mechanical damage, crush, and rodents, while maintaining cable flexibility.
Is this OM4 or OM3?
This is OM4 multimode fiber, optimized for high-bandwidth applications.
Can I install this in a ceiling plenum?
Yes, this cable features a plenum-rated jacket for compliance in air-handling spaces.
