Overview

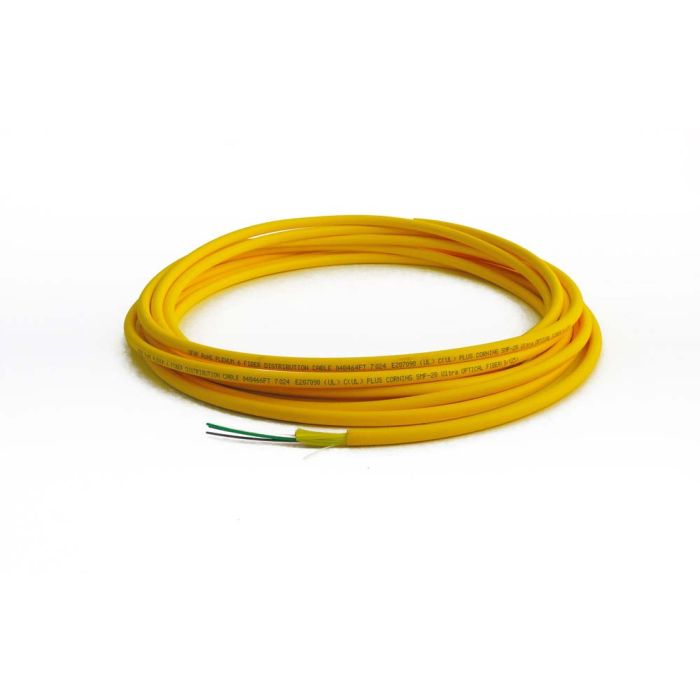

The TLC Distribution Fiber Optic Cable is engineered for indoor backbone and distribution applications. Featuring 900μm tight buffered fibers, this cable design allows for direct termination and faster installation by eliminating the need for complex breakout kits. Its plenum-rated jacket makes it suitable for installation in air-handling spaces in accordance with building codes.
Equipped with high-performance Corning SMF-28 Ultra singlemode fiber, this cable delivers exceptional optical transmission characteristics. The 2-fiber construction is designed for reliability in localized networking environments, providing a robust, flexible, and easy-to-manage solution for data centers, enterprise networks, and commercial building infrastructures.
Key Features
-
Tight Buffered Fibers
Features 900μm tight buffered fibers, enabling direct connector termination for faster, simpler installations. -
Plenum-Rated Jacket
Designed with a plenum-rated outer jacket, making it suitable for use in air-handling plenum spaces. -
Corning SMF-28 Ultra Fiber
Integrated with industry-standard singlemode glass for optimized performance and low attenuation. -
Distribution Design
Compact cable construction ensures efficient space utilization within cable trays and conduit systems. -
Versatile Termination
Compatible with direct field termination or fusion splicing to pigtails for backbone connectivity. -
Robust Outer Diameter
Features a 4.4mm outer diameter, providing a balance between durability and installation flexibility.
Applications
- Indoor backbone cabling
- Data center premise distribution
- Enterprise network environments
- Air-handling plenum spaces
- Direct termination connectivity
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 2 |
| Fiber Type | Singlemode (Corning SMF-28 Ultra) |
| Buffer Size | 900μm |
| Jacket Rating | Plenum |
| Cable Color | Yellow |
| Outer Diameter | 4.4mm |
Frequently Asked Questions
Is this cable suitable for outdoor use?
No, this cable is specifically designed for indoor applications with a plenum-rated jacket.
Does this cable require a breakout kit?
No, the 900μm tight buffered construction allows for direct termination, eliminating the need for breakout kits.
Can I use this cable in a ceiling plenum?
Yes, the plenum-rated jacket is specifically designed to meet safety requirements for air-handling spaces.
What is the fiber type?
This cable uses high-quality Corning SMF-28 Ultra singlemode fiber.
Are other fiber counts available?
While this specific SKU is for a 2-fiber cable, the distribution series supports counts from 2 up to 144 fibers.
