Overview

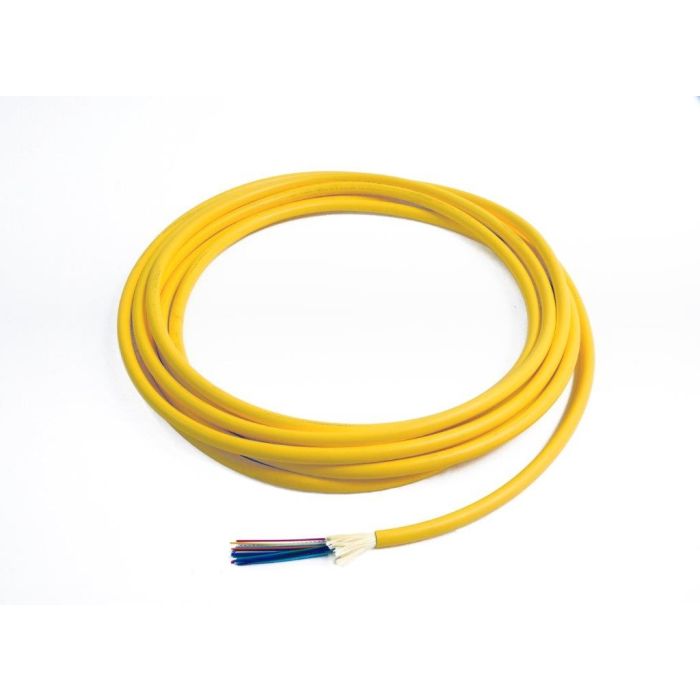

The TLC Distribution Fiber Optic Cable is a high-performance, 24-fiber singlemode solution designed for reliable indoor backbone and horizontal networking. Featuring Corning® SMF-28® Ultra fiber, this cable is engineered to minimize signal loss, providing robust connectivity for enterprise networks, data centers, and telecommunications infrastructure.
This cable utilizes 900um tight-buffered fibers, which allow for direct termination and simplified installation processes. By eliminating the need for breakout kits, technicians can save significant time during deployment. The plenum-rated yellow jacket ensures compliance with stringent fire safety regulations for use in air-handling spaces, making it an ideal choice for internal cable runs.
Key Features
-
24-Fiber Configuration
Provides high-density connectivity for demanding network environments. -
Corning® SMF-28® Ultra Fiber
Industry-standard singlemode fiber (9/125um) ensures low attenuation and long-distance transmission reliability. -
900um Tight-Buffered Design
Allows for direct connector termination and fusion splicing, reducing installation complexity and material costs. -
Plenum-Rated Jacket
Meets building safety codes for installation in plenum spaces, such as drop ceilings and raised floors. -
Yellow Jacket Coding
Standard color coding for easy identification as singlemode fiber within busy cable management systems. -
Subunit Grouping
Fibers are organized in subunits of 12 for efficient management and routing during termination.
Applications
- Indoor backbone cabling
- Enterprise network installations
- Data center inter-connects
- Horizontal cabling applications
- Telecommunications equipment rooms
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | TLC |
| Fiber Count | 24 |
| Fiber Type | Singlemode 9/125um |
| Fiber Performance | Corning® SMF-28® Ultra |
| Jacket Rating | Plenum |
| Jacket Color | Yellow |
| Buffer Size | 900um Tight Buffered |
Frequently Asked Questions
Is this cable suitable for outdoor use?
No, this is a distribution-style cable specifically designed for indoor environments and plenum-rated spaces.
Does this cable require breakout kits for termination?
No, the 900um tight-buffered fibers are designed to be terminated directly, which speeds up the installation process.
What is the fiber type?
This cable uses singlemode 9/125um fiber, specifically Corning® SMF-28® Ultra grade.
How are the fibers grouped?
The 24 fibers are organized into subunits of 12 fibers each to assist with orderly termination.
Is the length sold by the meter?
Yes, this product is sold by the meter to accommodate specific project requirements.
