Overview

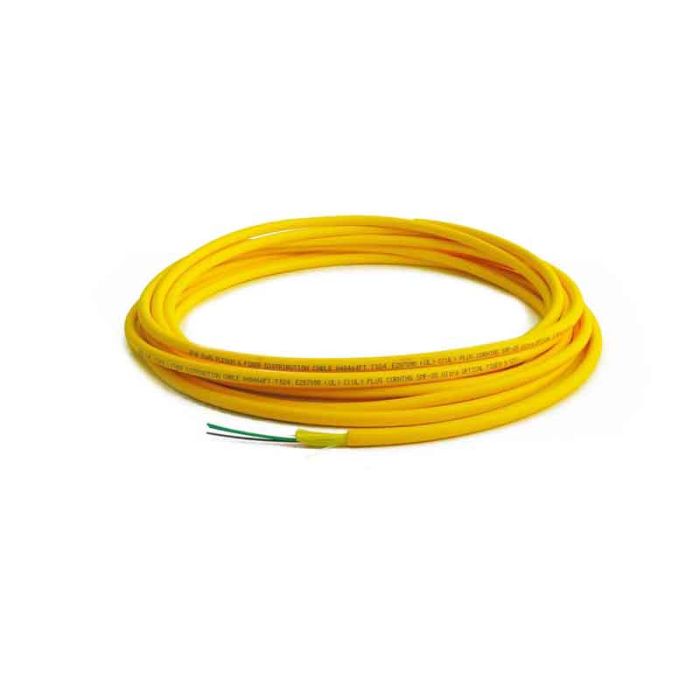

The TLC Distribution Fiber Optic Cable is designed for indoor networking environments requiring high-density fiber management. Featuring a 4-fiber configuration with Corning® SMF-28® Ultra Singlemode fiber, this cable is engineered for rapid termination in structured cabling systems.
The cable utilizes a distribution style architecture with 900μm tight-buffered fibers, which eliminates the need for complex breakout kits during installation. This construction allows for direct termination of connectors or simple fusion splicing of pigtails to backbone trunks. The plenum-rated yellow jacket ensures compliance with stringent fire safety building codes, making it suitable for air-handling spaces.
Key Features
-
Tight-Buffered Fibers
Features 900μm tight-buffered fibers that facilitate faster, easier direct field terminations. -
Corning® SMF-28® Ultra Fiber
Utilizes high-quality singlemode optical glass for reliable transmission performance and low attenuation. -
Plenum Rated
The outer jacket meets NFPA 262 plenum requirements, allowing for installation in building plenums and air ducts. -
Distribution Design
Constructed to simplify the transition from backbone cabling to individual device connections. -
Compact 4.4mm OD
Provides a space-saving profile ideal for high-density pathways and cable trays. -
Easy Connectorization
Compatible with industry-standard connectors for direct-to-fiber termination.
Applications
- Internal building backbone cabling
- High-density data center cross-connects
- Plenum-rated telecommunications rooms
- Local Area Network (LAN) infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 4 |
| Fiber Type | Singlemode (Corning® SMF-28® Ultra) |
| Cable Type | Distribution |
| Outer Diameter | 4.4mm |
| Jacket Rating | Plenum |
| Jacket Color | Yellow |
Frequently Asked Questions
Does this cable require a breakout kit?
No, the 900μm tight-buffered design allows for direct connector termination, bypassing the need for separate breakout kits.
Is this cable suitable for outdoor use?
No, this is a plenum-rated indoor distribution cable and is not designed for outside plant (OSP) exposure.
Can I splice this to a standard backbone cable?
Yes, the individual fibers can be easily fusion-spliced to standard backbone or trunk cabling.
What is the fiber diameter?
The cable contains 900μm tight-buffered fibers.
Does the cable have armor?
This specific part number is the non-armored version.
