Overview

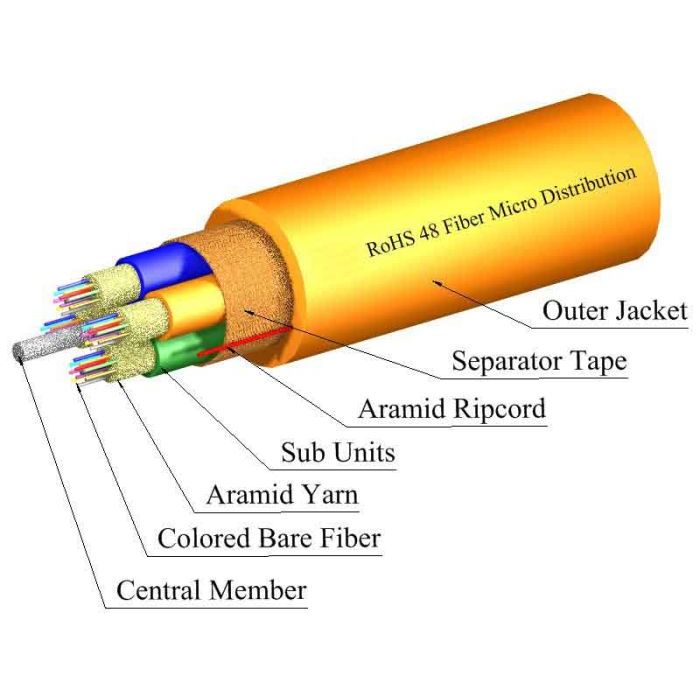

This TLC 48-fiber distribution cable is designed for high-density indoor networking applications. Featuring Corning® InfiniCor® 300 62.5/125um OM1 multimode fiber, this cable is engineered for reliable performance in vertical riser environments. Its distribution-style construction incorporates 900um tight-buffered fibers, which are grouped into subunits of 12 for simplified identification and management.
By utilizing tight-buffered fibers, this cable eliminates the need for breakout kits during termination, allowing for direct connector termination or fusion splicing to backbone cabling. The riser-rated jacket provides the necessary flame retardance for compliant installation within building shafts and other internal cable pathways.
Key Features
-
900um Tight-Buffered Fibers
Facilitates faster, easier connector termination without requiring complex breakout hardware. -
Corning® InfiniCor® 300 Fiber
Uses high-quality multimode glass for optimized performance and signal integrity. -
Subunit Design
Fiber counts exceeding 12 are organized into logical 12-fiber subunits for improved cable organization. -
Riser-Rated Jacket
Meets building code requirements for safe installation within vertical risers. -
High-Density Construction
Supports 48 fibers in a compact diameter suitable for space-constrained pathways. -
Versatile Termination
Compatible with direct field termination or fusion splicing to pigtails.
Applications
- Building backbone cabling
- Intra-building network distribution
- Data center cable management
- Riser pathways
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | TLC |
| Fiber Count | 48 |
| Fiber Type | Multimode (OM1) |
| Core/Cladding Size | 62.5/125um |
| Fiber Brand | Corning® InfiniCor® 300 |
| Construction | Distribution (900um tight buffered) |
| Jacket Rating | Riser |
| Jacket Color | Orange |
Frequently Asked Questions
Does this cable require a breakout kit?
No, the 900um tight-buffered construction allows for direct termination of connectors.
Are the fibers grouped?
Yes, fibers are organized into subunits of 12 for easier identification.
Is this cable suitable for outdoor use?
This cable is specified with a Riser-rated jacket for indoor use. Please consult local fire codes for vertical pathway requirements.
Can I fusion splice this cable?
Yes, the tight-buffered fibers can be fusion-spliced to pigtails.
What is the fiber type?
It uses 62.5/125um OM1 multimode glass.
