Overview

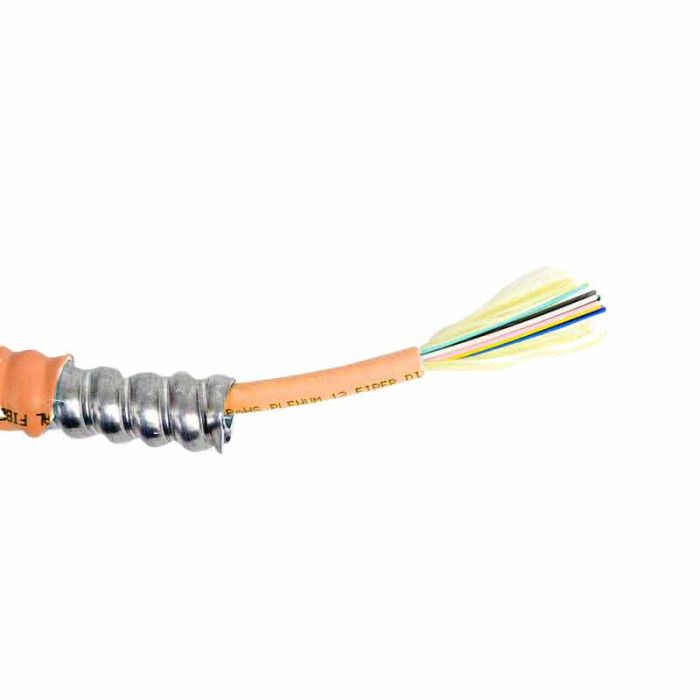

This TLC distribution-style fiber optic cable is designed for reliable indoor backbone and horizontal networking environments. It features 12 optical fibers protected by a robust aluminum interlocking armor, providing enhanced physical protection against crushing and impact in high-traffic or demanding installation areas.
Constructed with 900um tight buffered fibers, the cable facilitates faster and more efficient field terminations. It eliminates the need for complex breakout kits, as connectors can be applied directly to the buffered fibers. The plenum-rated jacket ensures the cable meets strict fire safety requirements for installation in air-handling spaces.
Key Features
-
12-Fiber Construction
Features high-density fiber count suitable for backbone and distribution applications. -
Aluminum Interlocking Armor
Provides superior crush resistance and mechanical protection for the cable core. -
900um Tight Buffered Fibers
Allows for direct connector termination, reducing installation time and costs. -
Plenum-Rated Jacket
Safety-rated for use in plenums and other air-handling environments. -
Easy Termination
Compatible with standard connectors and pigtail fusion splicing techniques. -
OM1 Multimode Fiber
Optimized for legacy multimode networking and short-range data transmission.
Applications
- Indoor backbone cabling
- Horizontal distribution networks
- Plenum-rated air handling spaces
- High-density fiber management systems
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Type | Multimode |
| Core Size | 62.5um |
| Cladding Size | 125um |
| Jacket Rating | Plenum |
| Jacket Color | Orange |
| Armor Type | Aluminum Interlocking Armor |
| Buffer Type | 900um Tight Buffered |
Frequently Asked Questions
Does this cable require breakout kits?
No, the 900um tight buffered design allows for direct termination of connectors.
Is this cable suitable for use in air plenums?
Yes, this cable features a plenum-rated jacket for safe installation in air-handling spaces.
What is the purpose of the aluminum interlocking armor?
The armor provides a layer of mechanical protection to prevent damage from crushing or impact.
How many fibers are in this cable?
This cable contains 12 optical fibers.
Can I splice pigtails directly to these fibers?
Yes, the fibers are suitable for both direct connectorization and fusion splicing to backbone cabling.
