Overview

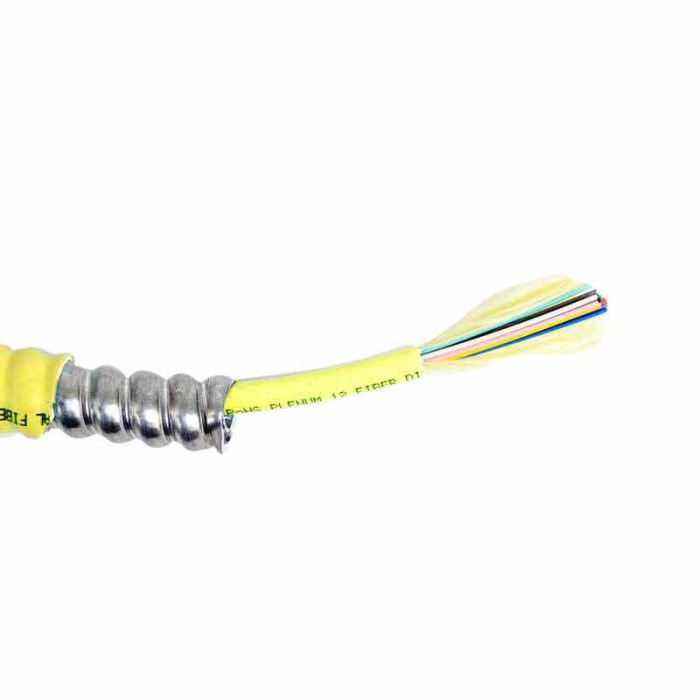

The TLC Distribution Fiber Optic Cable is engineered for indoor backbone and trunking environments, featuring 12 fibers of Corning® SMF-28® Ultra Singlemode fiber. Designed for robust protection, this cable includes aluminum interlocking armor, making it suitable for areas requiring additional mechanical durability while maintaining plenum-rated compliance.
This distribution-style cable utilizes 900um tight-buffered fibers, which streamlines the termination process by allowing direct connectorization without the need for additional breakout kits. It is an ideal solution for data centers and commercial buildings that require high-density fiber management with simplified installation.
Key Features
-
12-Fiber Count
Features twelve 900um tight-buffered fibers for high-density networking applications. -
Aluminum Interlocking Armor
Provides exceptional crush resistance and mechanical protection in demanding environments. -
Plenum Rated
Jacket material meets rigorous fire safety standards for use in air-handling spaces. -
Corning® SMF-28® Ultra Fiber
Utilizes industry-standard OS2 singlemode fiber for consistent optical performance and compatibility. -
Tight Buffered Construction
Allows for direct termination of connectors or simple fusion splicing of pigtails to backbone cabling. -
Yellow Jacket
Standardized color-coding for easy identification of singlmode cabling in diverse installations.
Applications
- Indoor data center backbones
- Commercial building horizontal and riser cabling
- Telecommunications closets
- High-density fiber distribution networks
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Type | Singlemode 9/125um (OS2) |
| Fiber Brand | Corning® SMF-28® Ultra |
| Armor Type | Aluminum Interlocking Armor |
| Jacket Rating | Plenum |
| Jacket Color | Yellow |
| Fiber Construction | 900um Tight Buffered |
Frequently Asked Questions
What is the benefit of the aluminum interlocking armor?
The armor provides a rugged protective layer that prevents crushing and physical damage to the internal fibers in high-traffic or demanding installation areas.
Can I terminate connectors directly to this cable?
Yes, the 900um tight-buffered fibers are designed to be terminated directly, which eliminates the time and material costs associated with installing breakout kits.
Is this cable suitable for outdoor use?
No, this is a plenum-rated cable designed specifically for indoor environments, such as plenums, risers, and data center pathways.
What does the OS2 designation mean?
OS2 identifies the cable as laser-optimized, low-water-peak singlmode fiber compliant with ITU-T G.652.D/G.657.A1 standards for long-haul and enterprise applications.
How are the fibers organized in the 12-fiber configuration?
The fibers are provided in a distribution style, facilitating straightforward access for termination or fusion splicing.
