Overview

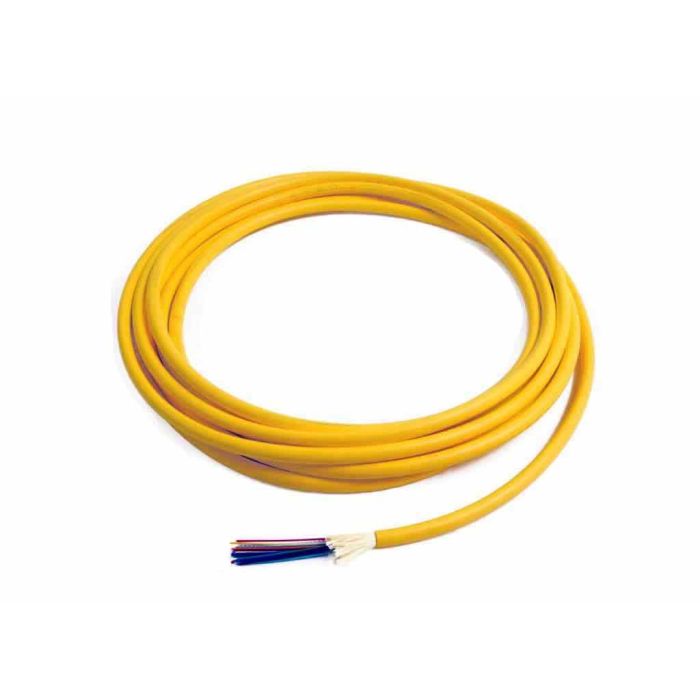

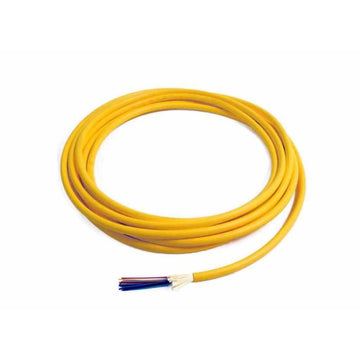

The TLC Distribution Fiber Optic Cable is a robust solution designed for high-density networking and backbone cabling applications. Featuring 48 SMF28 Ultra singlemode 9/125um fibers, this cable is engineered for high-performance data transmission in indoor environments requiring enhanced protection.
The cable utilizes 900um tight buffered fibers, which significantly simplify the termination process by eliminating the need for breakout kits. It is enclosed in an aluminum interlocking armor, providing superior mechanical protection against crushing and impact, making it ideal for high-traffic areas or environments where additional cable durability is required. The Plenum-rated jacket ensures compliance with building fire safety standards for use in air-handling spaces.
Key Features
-
Aluminum Interlocking Armor
Provides excellent physical protection against impacts and crushing for high-security or industrial installations. -
48 Fiber Count
Supports high-density connectivity requirements for backbone and trunk applications. -
Tight Buffered Design
Features 900um buffered fibers that allow for direct termination of connectors, saving time and labor. -
SMF28 Ultra Singlemode Fiber
Utilizes industry-standard OS2 fiber for long-distance, high-bandwidth communication. -
Plenum Rated
Jacket construction is approved for installation in plenum air-handling spaces, meeting critical building fire safety codes. -
Subunit Organization
Fiber counts are organized into subunits of 12 for efficient identification and management during installation.
Applications
- Indoor backbone and trunk cabling
- Data center high-density connectivity
- Air-handling plenum environments
- Areas requiring mechanical impact protection
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 48 |
| Fiber Type | Singlemode (OS2) |
| Fiber Size | 9/125um |
| Fiber Construction | 900um Tight Buffered |
| Armor Type | Aluminum Interlocking Armor |
| Jacket Rating | Plenum |
| Jacket Color | Yellow |
Frequently Asked Questions
Can I terminate connectors directly onto this cable?
Yes, the 900um tight buffered fiber design allows for direct termination of connectors without the need for breakout kits.
Is this cable suitable for outdoor use?
This specific version is intended for indoor applications (Plenum). Please consult a professional for outdoor-rated requirements.
How are the 48 fibers organized?
The fibers are grouped into subunits of 12 fibers each for easier identification and cable management.
What is the purpose of the aluminum interlocking armor?
The armor provides a layer of mechanical protection, preventing crushing and protecting the internal fibers in high-traffic or industrial areas.
Is this cable compatible with fusion splicing?
Yes, the fibers can be easily fusion-spliced to backbone or trunk cables.
