Overview

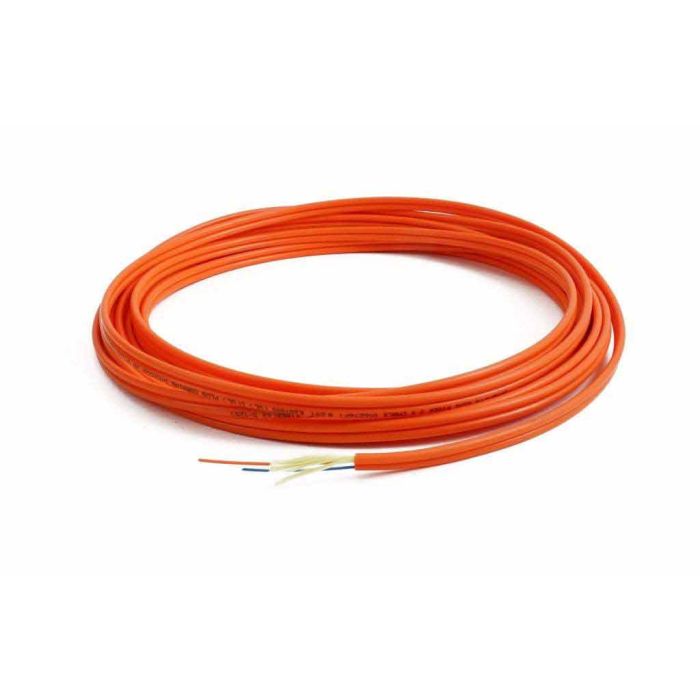

The TLC Duplex Cable is designed for high-performance fiber optic networking environments. This cable features two tight-buffered optical fibers protected by aramid yarn and a durable, flame-retardant PVC outer jacket. It is engineered with Corning® ClearCurve® OM2 multimode fiber to provide robust signal integrity and reliability.
This duplex cable is suitable for indoor installation in riser-rated environments. It is compliant with EU RoHS and REACH Directive standards, ensuring it meets environmental and safety requirements for modern data centers and enterprise network infrastructures.
Key Features
-
Corning® ClearCurve® OM2 Fiber
Features high-quality, bend-insensitive multimode fiber to minimize signal loss in tight spaces. -
Duplex Construction
Contains two tight-buffered fibers for efficient send/receive connectivity in a single cable assembly. -
Riser-Rated PVC Jacket
Constructed with flame-retardant materials suitable for vertical building pathways. -
Aramid Yarn Strength Member
Provides essential tensile strength to protect fibers during installation and cable management. -
Industry Standard Color Coding
Available in standard industry colors for easy identification and organized cable routing. -
RoHS and REACH Compliant
Manufactured in accordance with strict international environmental and hazardous substance standards.
Applications
- Data center interconnections
- Enterprise LAN/WAN backbones
- Building premise distribution
- Fiber optic patch cord fabrication
- Riser-rated indoor networking environments
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | The Light Connection (TLC) |
| Fiber Type | Multimode 50/125um |
| Fiber Grade | Corning® ClearCurve® OM2 |
| Cable Type | Duplex Tight Buffered |
| Jacket Rating | Riser (PVC) |
| Outer Diameter | 3mm |
| Jacket Color | Orange |
| Strength Member | Aramid Yarn |
Frequently Asked Questions
What is the primary benefit of using ClearCurve® fiber?
ClearCurve® fiber is designed to be bend-insensitive, which significantly reduces signal loss caused by tight bends or challenging cable management installations.
Is this cable suitable for plenum spaces?
This specific model is rated for Riser (PVC) environments. For plenum-rated requirements, please consult our catalog for alternative cable specifications.
Can I order this cable in different colors?
Yes, this duplex cable is available in all 12 industry-standard colors. Custom printing on the jacket is also available upon request.
What does the duplex configuration consist of?

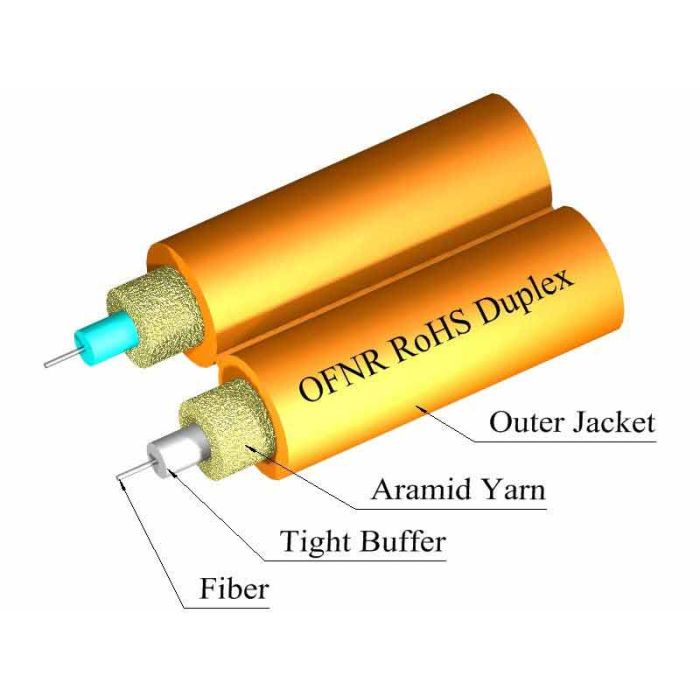

The duplex cable consists of two tight-buffered optical fibers housed within an outer PVC jacket, reinforced with aramid yarn.
Is this cable environmentally certified?
Yes, all components meet EU RoHS and REACH Directive standards.
