Overview

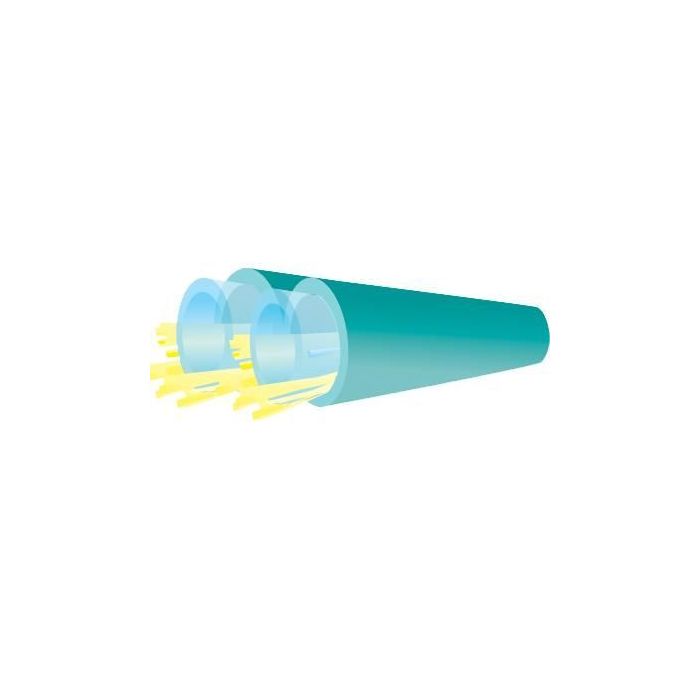

The TLC Duplex Furcation Tube provides essential protection for bare optical fibers during the termination process. Designed for indoor riser applications, this furcation tubing is a critical component for managing and shielding fibers as they are transitioned into connectorized assemblies.
Constructed with an inner tube reinforced by aramid fibers and protected by a durable PVC jacket, it provides the structural integrity required for field terminations. The 3mm outer diameter allows for compatibility with a wide range of industry-standard connector styles, while the integrated pull string simplifies the insertion of fiber through the tube.
Key Features
-
Integrated Pull String
Features an internal pull string to facilitate quick and easy fiber threading during assembly. -
Aramid Fiber Strength Members
Includes integrated aramid yarns to provide tensile strength and prevent fiber breakage during handling. -
PVC Jacket Construction
Utilizes a riser-rated PVC outer jacket for flame retardant performance in vertical indoor environments. -
3mm Outer Diameter
Designed with a 3mm OD, making it universally compatible with standard fiber optic connector boots and strain relief systems. -
Color-Coded Identification
Available in a standard aqua color for high-visibility identification in multi-fiber environments. -
Flexible Design
Provides excellent bend radius protection for delicate fibers during the termination process.
Applications
- Field termination of bare fiber
- Fiber optic patch cord assembly
- Break-out kit construction
- Central office and data center fiber management
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | TLC |
| Part Number | F00FDX3NUAPLM |
| Outer Diameter | 3mm |
| Material | PVC |
| Construction | Duplex with pull string |
| Color | Aqua |
| Rating | Riser |
Frequently Asked Questions
What is the purpose of furcation tubing?
Furcation tubing is used to transition bare optical fibers into a ruggedized format, providing mechanical protection and strain relief during the termination process.
Is this tube riser-rated?
Yes, this tubing is rated for riser-level (vertical) indoor installation environments.
Does this include a pull string?
Yes, this specific part number is supplied with an integrated pull string to assist in fiber insertion.
What is the outer diameter of this tubing?
This tubing has an outer diameter of 3mm.
Can I use this with any fiber connector?
It is designed to be compatible with a wide range of connector styles that accept a standard 3mm jacketed fiber.
