Overview
The TLC Duplex Furcation Tube is designed to provide robust protection for exposed fiber strands during the termination process. By adding a protective buffer layer, this tube ensures that individual fibers are shielded from mechanical stress when being terminated to a wide variety of connector styles.

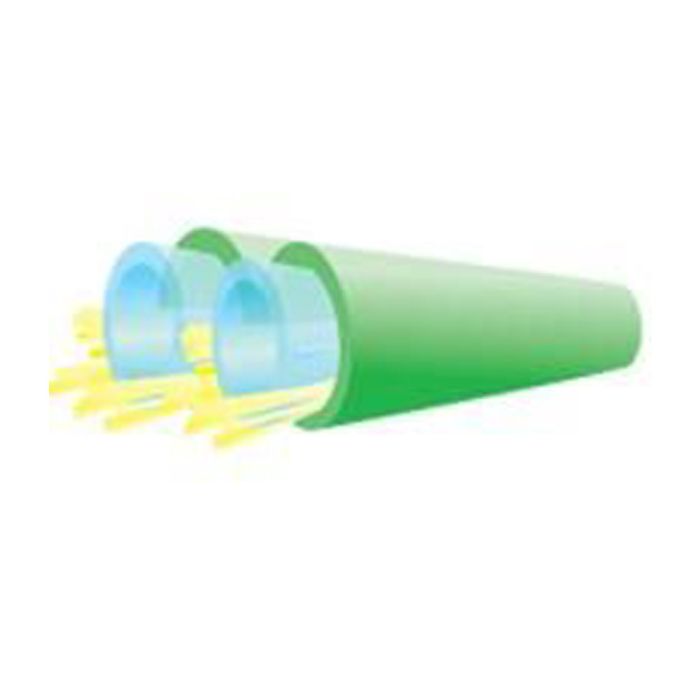

The construction consists of a specialized inner tube protected by an aramid fiber strength member, all encased within a durable PVC Riser-rated jacket. The inclusion of an integrated pull string facilitates the efficient installation of fiber through the tubing, making it an essential component for fiber technicians and network installers working in indoor environments.
Key Features
-
Connector Compatibility
Engineered to terminate easily to a wide range of industry-standard connector styles. -
Integrated Pull String
Includes a pre-installed pull string to simplify and accelerate the fiber insertion process. -
Durable Construction
Features an inner tube reinforced with aramid fibers for added structural integrity. -
Riser-Rated Jacket
Equipped with a PVC Riser-rated outer jacket suitable for indoor building installations. -
Color-Coded Identification
Available in standard colors to assist in quick identification and organization during cable management. -
3mm Outer Diameter
Designed with a consistent 3mm outer diameter for standard connector boot fitment.
Applications
- Fiber optic patch cord fabrication
- Connector termination protection
- Indoor premise cabling
- Fiber management and routing
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Duplex Furcation Tube |
| Jacket Material | PVC (Riser) |
| Outer Diameter | 3mm |
| Color | Green |
| Features | Pull String Included |
Frequently Asked Questions
What is the primary purpose of a furcation tube?
It is used to transition bare fiber strands or loose tube fiber into a more rugged 3mm jacketed cable, allowing for the attachment of standard fiber optic connectors.
Is this tube fire-rated for indoor use?
Yes, this is a Riser-rated (OFNR) product suitable for vertical tray installations within buildings.
Can I use this for outdoor applications?
No, this product is specified for Riser-rated indoor environments and does not have the UV or moisture resistance required for outdoor plants.
How do I install the fiber through the tube?
The tube includes an integrated pull string which is used to pull the fiber through the length of the furcation tube.
What size connectors does this accommodate?
The 3mm outer diameter is compatible with standard fiber optic connector boots designed for 3mm cable.
