Overview
The TLC Furcation Tube is designed to provide robust mechanical protection when breaking out multi-fiber cables into individual 900um buffered fibers. By offering a transition from multi-fiber structures to manageable, protected leads, it facilitates easier handling and connectorization during field installation.

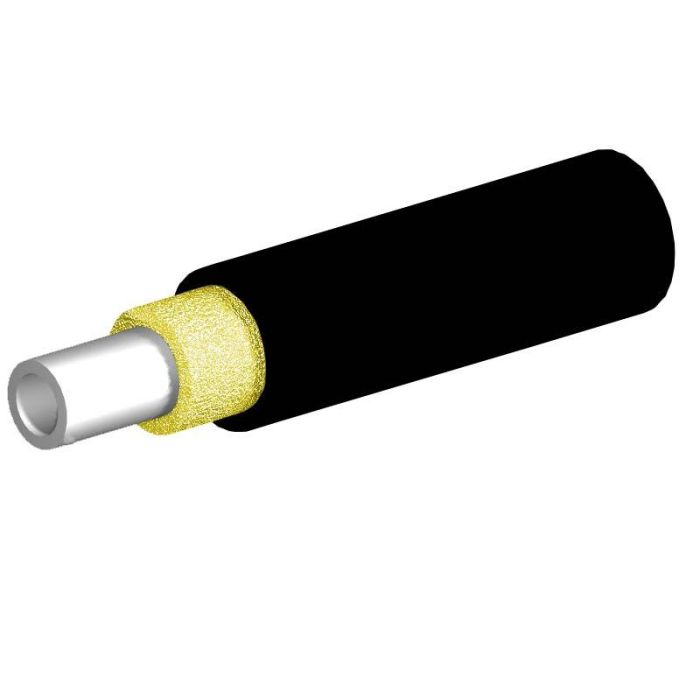

The tube is constructed with an inner protective sleeve (available in polypropylene or LDPE) reinforced with aramid yarn for dielectric strength, all contained within a durable PVC outer jacket. This construction ensures that delicate 250µm coated fibers are shielded from physical stress and environmental hazards during the termination process.
Key Features
-
Durable Construction
Features a PVC outer jacket and inner tube reinforced with aramid yarn to protect fibers from mechanical stress. -
Termination Versatility
Compatible with a wide range of industry-standard fiber optic connector styles. -
Fiber Protection
Specifically engineered to house and protect 250µm diameter coated fibers. -
Color-Coded Identification
Available in 12 standard TIA colors to simplify identification and cable management. -
Flexible Deployment
Supplied in a 2mm outer diameter profile for consistent breakout management.
Applications
- Fiber optic cable breakout assemblies
- Multi-fiber cable termination
- Field connectorization
- Premise wiring protection
Technical Specifications
| Specification | Value |
|---|---|
| Outer Diameter | 2mm |
| Inner Diameter | 900µm |
| Jacket Material | PVC |
| Strength Member | Aramid Yarn |
| Fiber Compatibility | 250µm Coated Fiber |
| Color | Black |
Frequently Asked Questions
What is the purpose of a furcation tube?
A furcation tube is used to convert 250µm bare or coated fiber into a more robust 900µm buffered lead, providing the necessary protection for termination with connectors.
Can I use this for indoor and outdoor applications?
This tube is generally designed for indoor breakout applications where multi-fiber cables require conversion to individual connectorized pigtails.
Is the inner tube material uniform?
The inner tube material can vary between polypropylene or LDPE depending on the specific manufacturing run; however, the outer dimensions remain consistent for standard connector usage.
Does this product include fiber?
No, this is the empty tubing and strength member used for the breakout process; it does not contain the optical fiber itself.
Are other colors available?
Yes, the product is available in 12 standard TIA colors for identification purposes, with custom colors available upon request.
