Overview

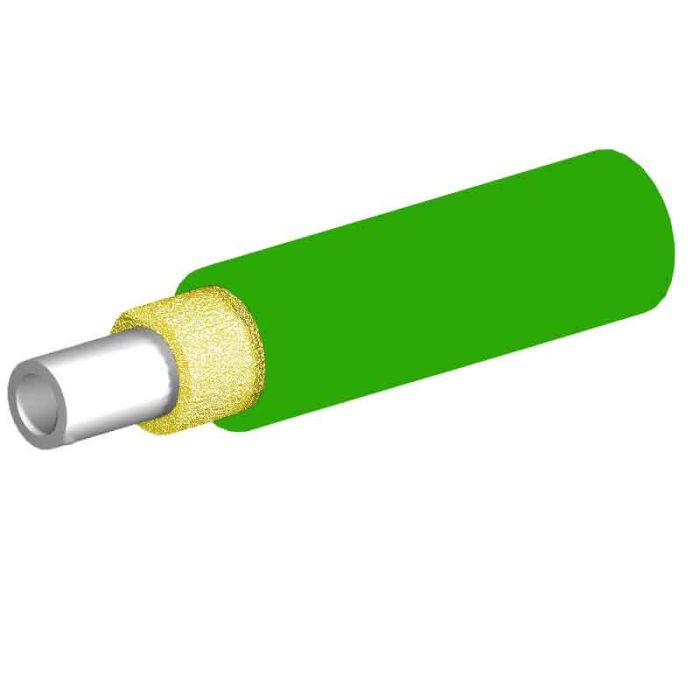

The TLC Furcation Tube 2mm/900um is designed for robust fiber optic protection, specifically engineered to provide a secure breakout for multi-fiber cable assemblies. This tubing is essential for transitioning bare 250µm optical fibers into a manageable, protected 2mm format, facilitating easier handling and termination to a wide range of standard connector styles.
Constructed with a durable PVC outer jacket and incorporating aramid yarn as a dielectric strength member, this furcation tube offers increased physical integrity during installation and service. It is suitable for diverse indoor environments and comes in a green color for clear identification in complex fiber management systems.
Key Features
-
High-Compatibility Design
Optimized to terminate to a wide array of standard connector styles, providing versatility for various networking builds. -
Integrated Strength Member
Features aramid yarn as a dielectric strength member, enhancing tensile strength and cable protection. -
250µm Fiber Support
Accepts 250µm diameter coated fiber, ensuring a secure fit for standard loose-tube or ribbon fiber breakouts. -
Durable Construction
Utilizes a PVC outer jacket for reliable environmental protection and cable longevity. -
Standard Color Coding
Available in a distinct green color, allowing for efficient network documentation and identification. -
Multi-Fiber Breakout Utility
Provides the necessary mechanical structure to safely transition multi-fiber cables into individual connectorized paths.
Applications
- Fiber breakout assemblies
- Patch panel termination
- Central office fiber management
- Data center cable organization
- General premise cabling
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F00FR2NUG900 |
| Outer Diameter | 2mm |
| Inner Tube Diameter | 900µm |
| Jacket Material | PVC |
| Strength Member | Aramid Yarn |
| Color | Green |
Frequently Asked Questions
What is the primary purpose of this furcation tube?
It is used to provide protective, durable housing when breaking out individual fibers from multi-fiber cables for termination.
Does this tubing include strength members?
Yes, it includes aramid yarn to provide dielectric strength and added physical protection for the fiber.
What size fiber does the inner tube accept?
It is designed to accept 250µm diameter coated fibers.
Can I use this for outdoor applications?
This tube is primarily designed for indoor breakout assemblies using a PVC jacket; refer to local fire codes for specific installation environments.
What is the outer diameter of the tubing?
The outer diameter is 2mm.
