Overview

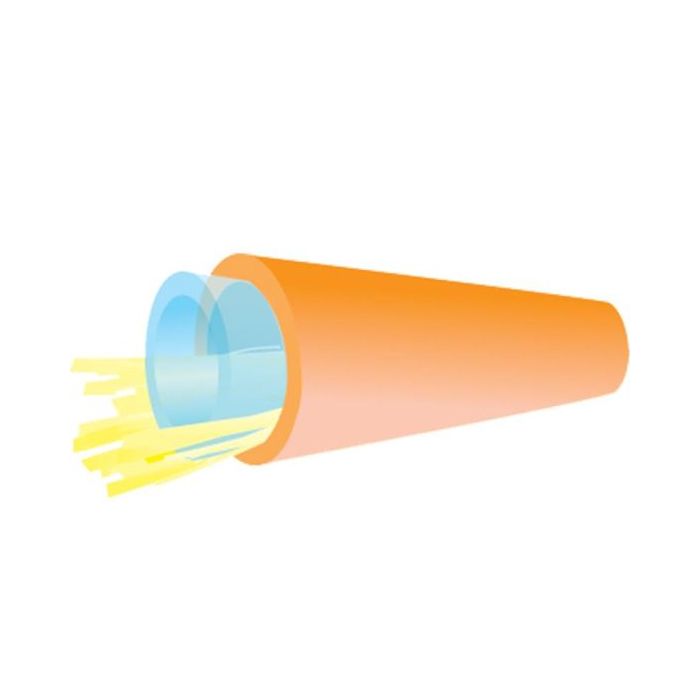

The TLC Furcation Tube is designed to provide robust protection for bare optical fibers during the termination process. By housing 250um fibers within a 900um buffer inside a 2mm outer diameter tube, it allows technicians to transition delicate bare fibers into ruggedized cable structures suitable for various connector terminations.
This furcation tube is constructed with an inner tube surrounded by protective aramid yarn and a durable PVC jacket. It is widely used in field termination and patch panel environments where added mechanical protection is required for fiber breakouts. The orange jacket aids in identifying specific fiber types or paths within complex cabling systems.
Key Features
-
Aramid Yarn Reinforcement
Features internal aramid yarn that provides added tensile strength and protects the fiber during handling. -
Protective PVC Jacket
Constructed with a durable PVC outer jacket to shield sensitive fibers from environmental damage and handling stresses. -
Standard Color Coding
Supplied in orange to ensure clear, consistent visual identification of fiber paths during installation and maintenance. -
Versatile Termination
Engineered to be compatible with a wide range of connector styles, simplifying the assembly process. -
Supports Bare Fiber
Specifically designed to accommodate and protect 250um bare fiber throughout the termination process. -
Compact 2mm OD
Features a 2mm outer diameter that provides a balance between mechanical protection and space efficiency within racks or enclosures.
Applications
- Field fiber termination
- Patch panel breakout assemblies
- Fiber management systems
- Cabling distribution environments
Technical Specifications
| Specification | Value |
|---|---|
| Outer Diameter | 2mm |
| Inner Buffer Size | 900um |
| Fiber Compatibility | 250um Bare Fiber |
| Jacket Material | PVC |
| Strength Member | Aramid Yarn |
| Color | Orange |
Frequently Asked Questions
What is the primary purpose of a furcation tube?
A furcation tube is used to provide mechanical protection to bare 250um fiber, allowing it to be safely handled and terminated into standard connector types.
What size fiber does this tube accommodate?
It is designed to accommodate 250um bare fiber.
Is the jacket material flame-retardant?
The tube features a PVC jacket commonly used in standard indoor cabling environments.
What is the purpose of the aramid yarn?
The aramid yarn provides tensile strength to the assembly, protecting the fragile glass fiber from mechanical stress during installation.
Can this be used for outdoor applications?
This specific product is generally intended for standard indoor fiber management and termination applications.
