Overview

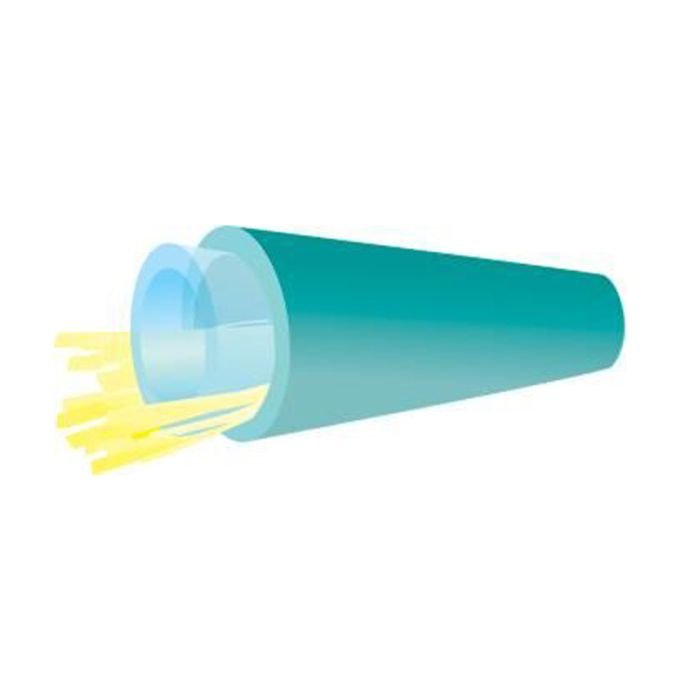

The TLC Furcation Tube is designed to provide robust protection for 900μm bare fiber during the termination process. This 2mm diameter tubing serves as a transition point, allowing delicate bare fibers to be integrated into standard connector hardware by providing the necessary structural support and strain relief.
The construction consists of an inner protective tube reinforced with aramid yarn, enclosed within a durable polyethlyene jacket. This configuration ensures that the fiber is shielded from mechanical stress, kinking, and environmental factors during and after installation. It is ideal for field termination environments where reliable, consistent protection for exposed fiber is required.
Key Features
-
Durable Construction
Features an inner tube reinforced with aramid yarn for improved tensile strength and fiber protection. -
Compatibility
Designed to accommodate 900μm bare fiber for easy termination into various connector styles. -
Easy Identification
Available in a standard aqua color for clear, visual channel or fiber type identification. -
Protection
Polyethylene outer jacket provides resistance to environmental wear and mechanical damage. -
Flexibility
Maintains a 2mm outer diameter, balancing robust protection with a manageable bend radius for installation. -
Standardized Sizing
Compatible with industry-standard fan-out kits and termination hardware.
Applications
- Fiber optic cable termination
- Fan-out assemblies
- Pigtail protection
- Data center fiber management
- Field splicing environments
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F00FR2NUAPLM |
| Outside Diameter | 2mm |
| Fiber Compatibility | 900μm bare fiber |
| Jacket Material | Polyethylene |
| Reinforcement | Aramid yarn |
| Color | Aqua |
Frequently Asked Questions
What is the primary purpose of this furcation tube?
It protects 900μm bare fiber from physical damage and provides the structure necessary to terminate fiber into standard connectors.
What fiber size is this tube designed for?
It is designed to accommodate 900μm bare fiber.
What is the outer diameter of the tubing?
The tube has an outer diameter of 2mm.
What is the outer jacket made of?
The outer jacket is constructed from polyethylene.
Does it contain internal reinforcement?
Yes, it includes an inner tube surrounded by aramid yarn for added tensile strength.
