Overview

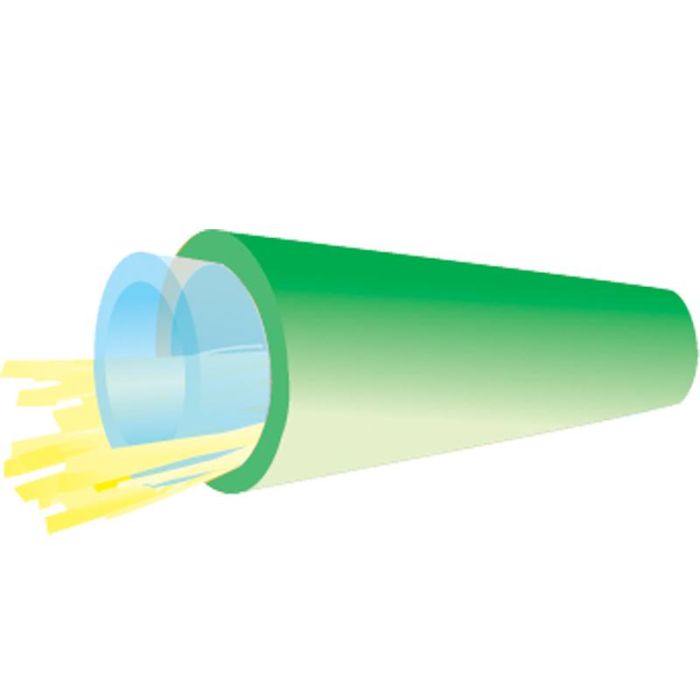

The TLC Furcation Tube provides essential protection for 900µm tight-buffered fibers when breaking out multi-fiber cables. By adding a ruggedized outer layer, it ensures fiber safety and manageability during termination to various connector styles.
Constructed with an inner tube, an aramid yarn strength member, and a durable PVC jacket, this tubing offers the mechanical support required for field and factory installations. The green color allows for easy fiber identification, supporting organized network deployment in both indoor and outdoor environments.
Key Features
-
Durable Protective Construction
Features an inner tube surrounded by aramid yarn and a PVC jacket for enhanced physical protection of delicate fiber strands. -
Compatibility
Designed specifically to accommodate 900µm tight-buffered fiber optics. -
Versatile Termination
Engineered to terminate efficiently to a wide range of standard fiber optic connector styles. -
Standard Color Coding
Available in 12 standard TIA colors to facilitate organized fiber management and identification. -
Dielectric Strength Member
Includes aramid yarn that acts as a dielectric strength member, adding tensile support without adding conductive metal. -
Standardized Diameter
Precision-engineered at 2mm to ensure compatibility with standard cable management and breakout hardware.
Applications
- Multi-fiber cable breakout
- Field termination of fiber optic connectors
- Fiber optic patch panel organization
- Indoor and outdoor cable management
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F00FR2NUG |
| Diameter | 2mm |
| Color | Green |
| Jacket Material | PVC |
| Strength Member | Aramid Yarn |
| Compatible Fiber Size | 900µm tight buffered |
Frequently Asked Questions
What is the primary use of this furcation tube?
It is used to provide protective breakout of multi-fiber cables when terminating 900µm fibers to connectors.
What materials are used in the construction?
The tube features a PVC outer jacket and an aramid yarn strength member for added durability.
Is this tube compatible with standard fiber connectors?
Yes, it is designed to accommodate a wide range of connector styles during the termination process.
Are other colors available?
Yes, the tubing is available in all 12 standard TIA identification colors.
Does the tubing contain any metal?
No, it utilizes aramid yarn as a dielectric strength member, making it non-conductive.
