Overview
The TLC 2mm furcation tube provides a robust protective covering for individual optical fibers. It is specifically designed to facilitate fiber breakout applications where 250µm coated fibers require additional mechanical support and protection before connector termination.

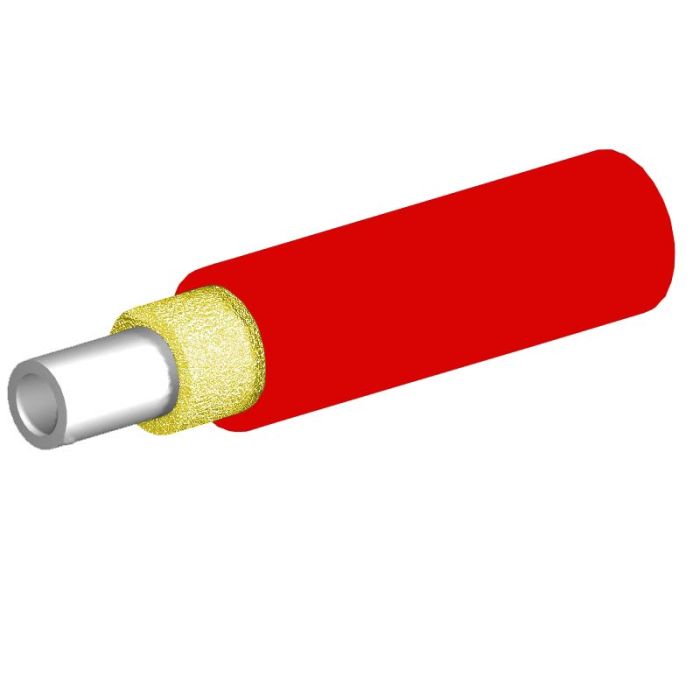

Constructed with an inner tubing layer, an aramid fiber strength member, and a durable PVC outer jacket, this tubing ensures excellent crush resistance and tensile strength. It is suitable for a wide range of indoor fiber optic cabling environments and is available in 12 standard TIA colors for intuitive circuit identification.
Key Features
-
2mm Outside Diameter
Optimized for standard connector boots and termination components. -
Aramid Strength Member
Integrates dielectric yarn to provide essential tensile strength and cable protection. -
PVC Jacket
Offers a durable outer shell for long-term reliability in indoor environments. -
Wide Compatibility
Engineered to terminate effectively to a broad spectrum of industry-standard fiber optic connector styles. -
TIA Color Coding
Available in the standard 12 TIA colors to simplify fiber identification and pathway management. -
Supports 250µm Fiber
Designed specifically to accept and protect 250µm diameter coated fiber.
Applications
- Fiber breakout kits
- Cable assembly production
- Field termination support
- Fiber management and routing
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Furcation Tube |
| Outer Diameter | 2mm |
| Fiber Compatibility | 250µm coated fiber |
| Jacket Material | PVC |
| Strength Member | Aramid Yarn |
| Color | Rose |
Frequently Asked Questions
What is the primary use for 2mm furcation tubing?
It is used to provide a protective breakout for bare 250µm fibers, allowing them to be safely handled and terminated into standard fiber optic connectors.
Can I use this with 900µm buffered fiber?
This tubing is specifically designed for 250µm coated fibers; it may not provide the correct fit for tighter buffer specifications.
What does the aramid yarn do?
The aramid yarn serves as a dielectric strength member, adding tensile strength to the assembly to protect the delicate optical fiber inside.
Is the jacket material suitable for plenum spaces?
The jacket is constructed from PVC; please consult your local building codes regarding installation requirements for indoor cabling.
Are other colors available?
Yes, the tubing is available in all 12 standard TIA colors to assist with circuit identification.
