Overview
The TLC 2mm furcation tube provides essential mechanical protection when breaking out multi-fiber cables for termination. Designed for durability in industrial environments, this tubing protects 900µm tight-buffered fibers during the transition from loose tube or distribution style cabling to individual connectors.

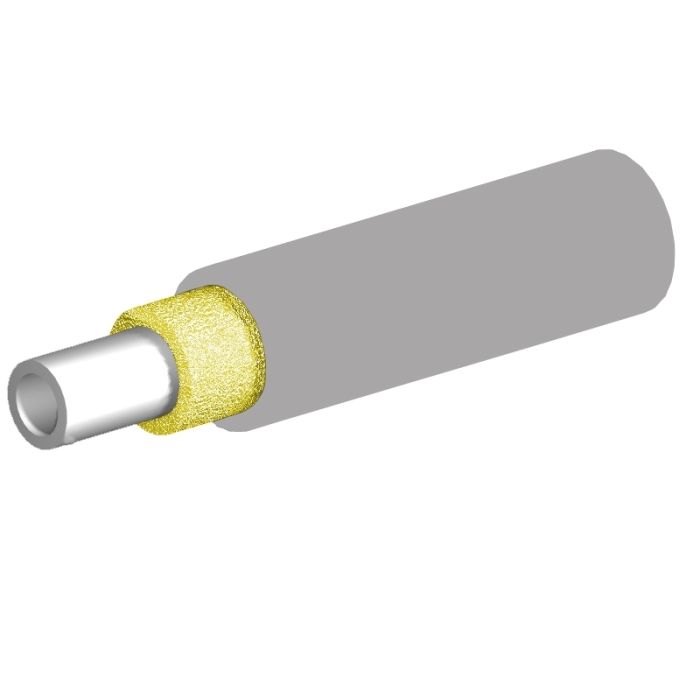

Constructed with an inner tube made of either polypropylene or LDPE, it features an integrated aramid yarn strength member to provide dielectric protection and tensile support. The 2mm diameter is optimized for compatibility with a wide range of standard connector styles, while the slate-colored PVC outer jacket ensures easy identification and cable management within patch panels and enclosures.
Key Features
-
2mm Outside Diameter
Standard size for broad compatibility with a wide range of fiber optic connector styles. -
Integrated Strength Member
Features aramid yarn to provide necessary tensile support for protected fiber breakout. -
Robust PVC Jacket
Provides a durable outer protective layer suitable for standard data center and premise environments. -
900µm Fiber Accommodation
Designed specifically to house and protect standard 900µm tight-buffered fibers. -
Identification Colors
Available in 12 standard TIA colors to facilitate organized cable identification during installation. -
Durable Construction
Uses high-quality inner tubing materials to ensure long-term stability and protection of internal fibers.
Applications
- Fiber optic cable breakout kits
- Transition from multi-fiber cables to individual connectors
- Data center cable management
- Premise wiring and patch panel termination
Technical Specifications
| Specification | Value |
|---|---|
| Tube Diameter | 2mm |
| Color | Slate |
| Outer Jacket Material | PVC |
| Inner Tube Material | Polypropylene or LDPE |
| Strength Member | Aramid Yarn |
| Fiber Compatibility | 900µm Tight Buffered |
Frequently Asked Questions
What is the primary purpose of this furcation tube?
It is used to provide mechanical protection to individual 900µm fibers when breaking out a multi-fiber cable for individual connector termination.
What materials are used for the tube construction?
The outer jacket is PVC, while the inner tube is manufactured from either polypropylene or LDPE.
Does this tubing include strength members?
Yes, it includes aramid yarn as a dielectric strength member to provide protection and support.
Is this compatible with standard fiber connectors?
Yes, it is designed to be compatible with a wide range of connector styles used in fiber optic assemblies.
How are these tubes identified?
This tubing is available in 12 standard TIA colors for easy identification during cable management.
