Overview

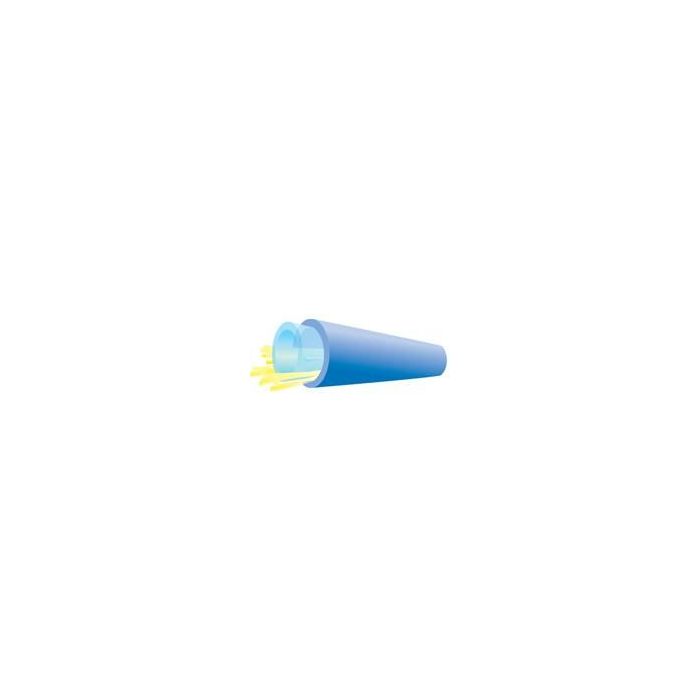

This 3mm furcation tubing is engineered to provide essential mechanical protection when breaking out multi-fiber cables for termination. It is specifically designed to accommodate 900µm tight-buffered fibers, ensuring they remain secure and protected during the connectorization process.
The construction consists of an inner tube, available in either polypropylene or LDPE, reinforced with aramid yarn to serve as a dielectric strength member. The assembly is finished with a durable PVC outer jacket, providing both flexibility and physical robustness for demanding installation environments.
Key Features
-
Connector Compatibility
Designed for termination to a wide range of industry-standard fiber optic connector styles. -
Fiber Protection
Specifically accommodates 900µm tight-buffered fibers to prevent damage during breakout. -
Durable Construction
Features an integrated aramid yarn strength member for added dielectric protection. -
Protective Outer Jacket
Includes a PVC outer jacket that provides long-term durability in field environments. -
Color-Coded Identification
Available in 12 standard TIA colors to simplify fiber identification and organization. -
Flexible Material Options
Inner tubing is available in polypropylene or LDPE to suit specific application requirements.
Applications
- Fiber optic cable breakout and fan-out assemblies
- General patch panel and enclosure management
- Custom fiber optic patch cord fabrication
- Equipment interconnects requiring added mechanical protection
Technical Specifications
| Specification | Value |
|---|---|
| Outer Diameter | 3mm |
| Inner Tube Compatibility | 900µm |
| Outer Jacket Material | PVC |
| Strength Member | Aramid Yarn |
| Color | Blue |
Frequently Asked Questions
What is the purpose of furcation tubing?
It provides mechanical protection and structural integrity to 900µm fibers when they are broken out from a larger multi-fiber cable for termination into connectors.
What materials are used in this tube?
The outer jacket is PVC, while the internal tubing consists of either polypropylene or LDPE. Aramid yarn is used as a strength member.
Can I order custom colors?
Yes, while 12 standard TIA colors are available, custom colors can be requested.
Is this sold by the meter?
Yes, this product is sold by the meter to accommodate specific project lengths.
Does this provide dielectric protection?
Yes, the inclusion of aramid yarn as a strength member provides a dielectric barrier for the fiber.
