Overview
The TLC Furcation Tube provides essential protection and organization for delicate 250µm optical fibers when performing cable breakouts. By providing a 3mm outer protective layer, this tubing ensures that individual fibers are shielded during the termination process to various connector styles.

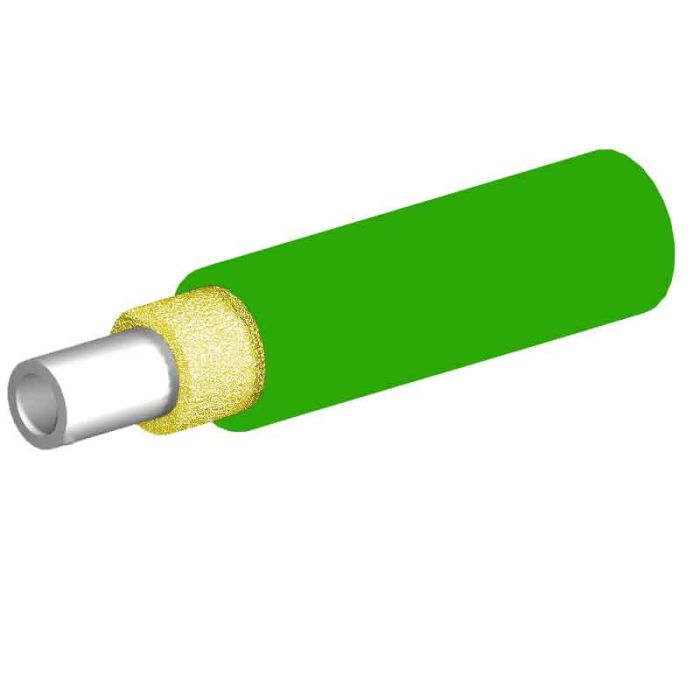

Constructed with an inner tube, aramid yarn for dielectric strength, and a durable PVC outer jacket, this tubing is suitable for diverse indoor networking environments. It is specifically designed to facilitate clean and organized fiber management in data centers and telecommunication installations.
Key Features
-
3mm Outer Diameter
Provides a robust protective housing for transition from multi-fiber cables to individual connectors. -
Aramid Strength Member
Includes integrated aramid yarn to provide dielectric strength and structural integrity. -
PVC Outer Jacket
Constructed with a PVC jacket for durability and protection in indoor cable environments. -
Fiber Compatibility
Specifically designed to accept and protect 250µm diameter coated fibers. -
Standard Color Coding
Available in 12 TIA-standard colors to simplify identification during installation. -
Versatile Termination
Engineered to be compatible with a wide range of standard fiber optic connector styles.
Applications
- Fiber optic cable breakout assemblies
- Data center cable management
- Equipment room fiber routing
- Termination of multi-fiber cables
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F00FR3NUG900 |
| Outside Diameter | 3mm |
| Inner Tube Diameter | 900µm |
| Fiber Compatibility | 250µm coated fiber |
| Jacket Material | PVC |
| Strength Member | Aramid Yarn |
| Color | Green |
Frequently Asked Questions
What is the purpose of furcation tubing?
Furcation tubing provides physical protection to fragile 250µm bare fibers by buffering them within a 3mm jacket, allowing for safer handling and termination.
Is the inner tube material customizable?
The inner tube is standardly available in polypropylene or LDPE.
Does this include strength members?
Yes, it includes aramid yarn as a dielectric strength member to provide tensile support.
Can I order other colors?
Yes, it is available in all 12 standard TIA colors, with custom colors available upon request.
What type of fiber does this accept?
It is designed to accept 250µm diameter coated fibers.
