Overview

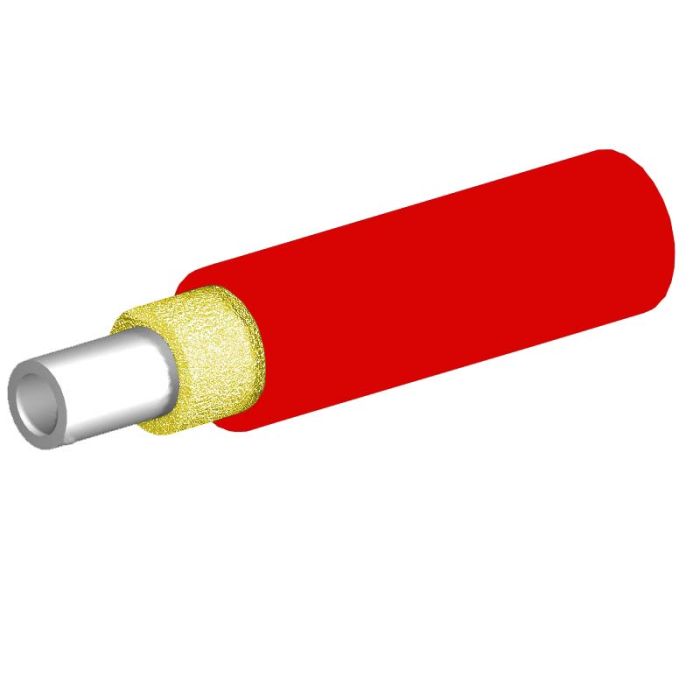

The TLC 3mm Furcation Tube with a 900um inner tube provides critical mechanical protection when breaking out multi-fiber cables for connector termination. Designed to enhance the durability of fiber assemblies, it ensures that individual fibers are shielded during the termination process.
The construction consists of an inner tube encapsulated by a layer of aramid fibers for tensile strength, finished with a rugged PVC outer jacket. This design is engineered to support the transition from multi-fiber loose-tube cables to individual 900um buffered fibers, making it a standard component for field-terminated fiber optic assemblies in data centers and enterprise environments.
Key Features
-
Protective Construction
Features a robust PVC outer jacket with aramid yarn strength members to protect against mechanical strain and environmental damage. -
Versatile Compatibility
Designed to accept standard 250um diameter coated fiber for a wide range of connector styles. -
Color-Coded Identification
Available in 12 standard TIA colors to simplify cable management and fiber identification in high-density installations. -
High-Quality Inner Tube
Includes a 900um inner tube available in polypropylene or LDPE to ensure proper support for the fiber. -
Easy Termination
Optimized for use in fan-out and breakout kits to facilitate efficient connector termination.
Applications
- Break-out kits and fan-out assemblies
- Data center fiber management
- Enterprise network cabling
- Field termination of multi-fiber cables
Technical Specifications
| Specification | Value |
|---|---|
| Outer Diameter | 3mm |
| Inner Tube | 900um |
| Jacket Material | PVC |
| Strength Member | Aramid Yarn |
| Compatible Fiber | 250um coated fiber |
| Color | Red |
Frequently Asked Questions
What is the primary use of this furcation tube?
It is used to protect and break out individual fibers from multi-fiber cables during the termination process.
What size fiber does this tube accommodate?
It is designed to accept 250um diameter coated fiber.
Is this tube compatible with all connector types?
The tube is designed to be compatible with a wide range of standard fiber optic connector styles.
What material is the outer jacket made of?
The outer jacket is constructed from durable PVC.
Are other colors available?
Yes, it is available in all 12 standard TIA identification colors.
