Overview
The TLC Furcation Tube provides essential protection for exposed fiber when breaking out multi-fiber cables for termination. It is engineered to transition 250µm coated fibers into a robust, manageable 3mm outer diameter structure, ensuring long-term durability during installation and operation.

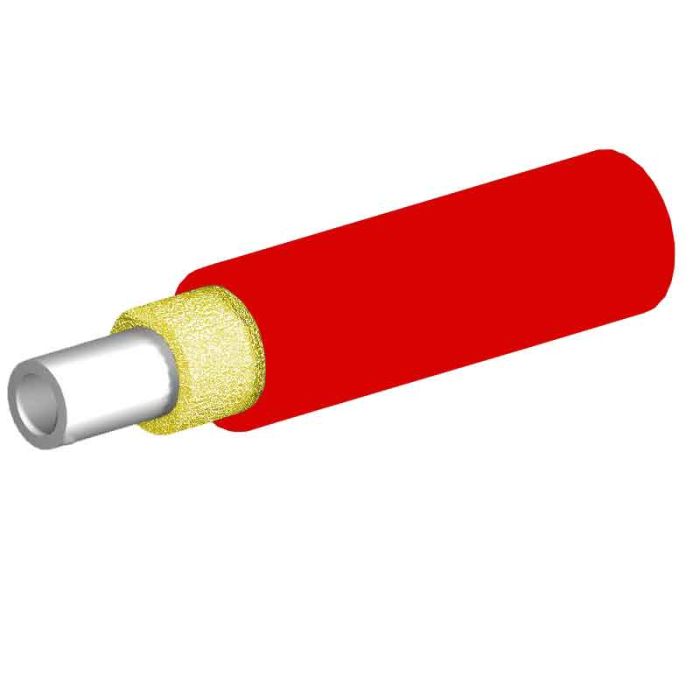

Constructed with a protective PVC outer jacket and an internal tube made of polypropylene or LDPE, the assembly incorporates aramid yarn as a dielectric strength member. This design prevents fiber kinking and mechanical stress, making it an ideal solution for patch panel environments and secure equipment enclosures.
Key Features
-
3mm Outer Diameter
Standard size for compatibility with common fiber optic connectors and cable management systems. -
Aramid Yarn Strength Member
Integrated dielectric yarns provide tensile strength to protect against installation strain. -
Protective Jacket
Durable PVC outer layer offers resistance to environmental hazards and mechanical abrasion. -
250µm Fiber Compatibility
Specifically designed to accept and protect standard coated optical fibers. -
Color-Coded Identification
Available in 12 standard TIA colors to simplify identification in high-density installations. -
Flexible Termination
Designed to facilitate easier termination to a wide range of connector styles.
Applications
- Fiber optic cable breakout kits
- Patch panel and equipment enclosure management
- FTTX distribution points
- Central office and data center fiber routing
Technical Specifications
| Specification | Value |
|---|---|
| Outer Diameter | 3mm |
| Inner Tube | 900µm |
| Jacket Material | PVC |
| Inner Tube Material | Polypropylene or LDPE |
| Strength Member | Aramid Yarn |
| Color | Rose |
Frequently Asked Questions
What is the purpose of this furcation tube?
It provides a protective housing for 250µm bare fibers, allowing them to be handled safely and terminated with standard 3mm-compatible connectors.
Does this tube include strength members?
Yes, it features integrated aramid yarn as a dielectric strength member for added tensile protection.
What materials are used for the tubing?
The outer jacket is PVC, while the inner tube is constructed from either polypropylene or LDPE.
Can I use this for indoor and outdoor applications?
This product is primarily designed for indoor breakout applications within enclosures and patch panels.
Are other colors available?
Yes, this tubing is available in all 12 standard TIA colors for easy circuit identification.
