Overview
The TLC Furcation Tube provides essential protection for bare optical fibers when transitioning from a multi-fiber cable to individual connectors. By providing a 3mm outer diameter, it adds a robust buffer that facilitates handling and termination to a wide range of connector styles.

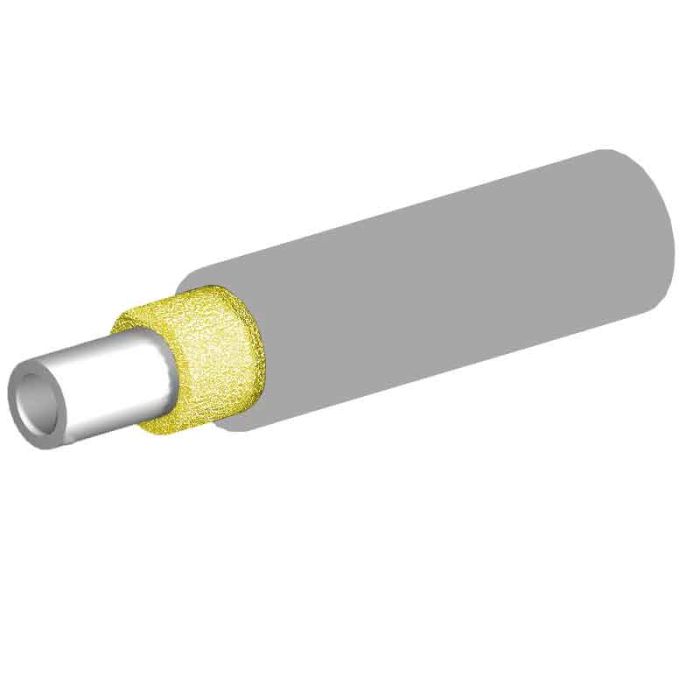

Designed for professional installation environments, the tubing consists of an inner tube (available in polypropylene or LDPE) surrounded by aramid fibers for dielectric strength and a durable PVC outer jacket. It is engineered to accept 250µm diameter coated fiber, providing the necessary strain relief and mechanical protection required for reliable field termination.
Key Features
-
Aramid Fiber Reinforcement
Features integrated aramid yarn as a dielectric strength member to prevent cable damage during handling. -
Standard 3mm Outer Diameter
Provides a ruggedized housing that is compatible with most standard industry connectors. -
250µm Fiber Compatibility
Precision engineered to accept standard coated fibers for breakout applications. -
12 Standard TIA Colors
Available in a full range of industry-standard colors to simplify fiber identification and circuit mapping. -
Durable PVC Jacket
Offers protection against physical wear and environmental stress in standard installation areas. -
Flexible Inner Tube
Utilizes polypropylene or LDPE for consistent performance and ease of installation.
Applications
- Fiber optic cable breakout kits
- Multi-fiber cable termination
- Patch panel fiber management
- Field termination of sub-units
Technical Specifications
| Specification | Value |
|---|---|
| Outer Diameter | 3mm |
| Compatible Fiber Size | 250µm |
| Jacket Material | PVC |
| Strength Member | Aramid Yarn |
| Color | Slate |
Frequently Asked Questions
What fiber type does this furcation tube accept?
It is designed to accept 250µm diameter coated fibers.
Is the length sold per meter?
Yes, this product is sold per meter to allow for custom breakout length requirements.
What is the purpose of the aramid yarn?
The aramid yarn serves as a dielectric strength member, providing tensile strength and protecting the internal fiber from strain.
Can I get this in colors other than slate?
Yes, it is available in 12 standard TIA colors for easy circuit identification.
What is the outer jacket made of?
The outer jacket is constructed from PVC for durability.
