Overview
The TLC 3mm Furcation Tube provides essential protection for bare optical fibers during the termination process. Designed to transition 250µm coated fibers into a more robust 3mm diameter format, this tubing is ideal for creating breakouts in multi-fiber cable assemblies.

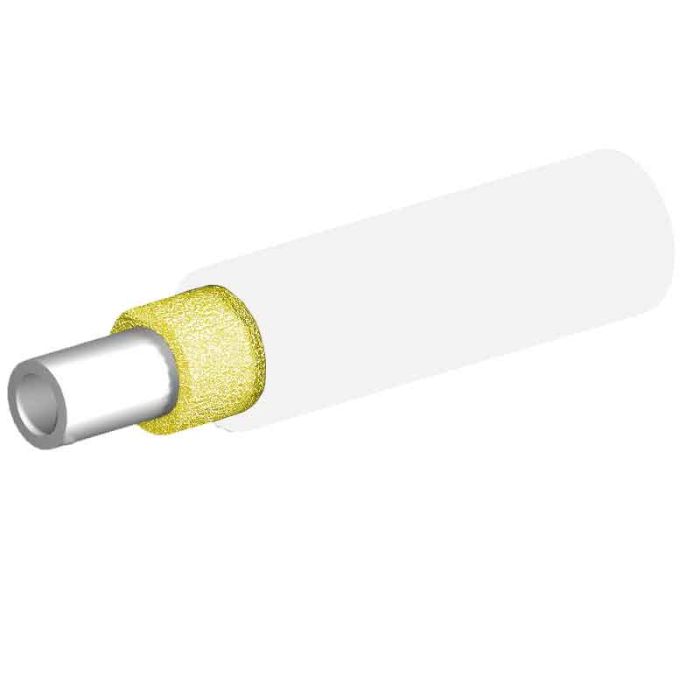

The construction features an inner tube protected by aramid yarn for dielectric strength, encased in a durable PVC outer jacket. This design ensures that delicate fibers are shielded from mechanical stress, kinks, and handling damage in data center and enterprise network environments.
Key Features
-
Durable Construction
Features an inner tube reinforced with aramid yarn and a PVC outer jacket for mechanical protection. -
Universal Compatibility
Designed to accommodate 250µm coated optical fibers for versatile termination. -
Connector Versatility
Supports termination to a wide range of standard fiber optic connector styles. -
Easy Identification
Available in 12 standard TIA colors to facilitate quick cable management and organization. -
Breakout Application
Provides reliable protection when breaking out multi-fiber cables into individual fibers. -
Standard Diameter
Features a 3mm outer diameter, consistent with standard furcation and cable management hardware.
Applications
- Fiber optic cable breakout kits
- Field termination of multi-fiber cables
- Data center cable management
- Enterprise network fiber installations
Technical Specifications
| Specification | Value |
|---|---|
| Outer Diameter | 3mm |
| Inner Tube Capacity | 900µm / 250µm fiber |
| Jacket Material | PVC |
| Strength Member | Aramid Yarn |
| Color | White |
| Unit of Measure | Per Meter |
Frequently Asked Questions
What is the primary use of this furcation tube?
It is used to provide mechanical protection to bare 250µm fibers when breaking out multi-fiber cables for connector termination.
What is the outer diameter of this tubing?
The outer diameter is 3mm.
Is this tube compatible with all fiber types?
It is designed to accept 250µm diameter coated fiber, which is common to most singlemode and multimode fiber types.
What materials are used for the jacket?
The outer jacket is constructed from PVC for durability.
Does this product include strength members?
Yes, it includes aramid yarn as a dielectric strength member to prevent fiber strain.
