Overview

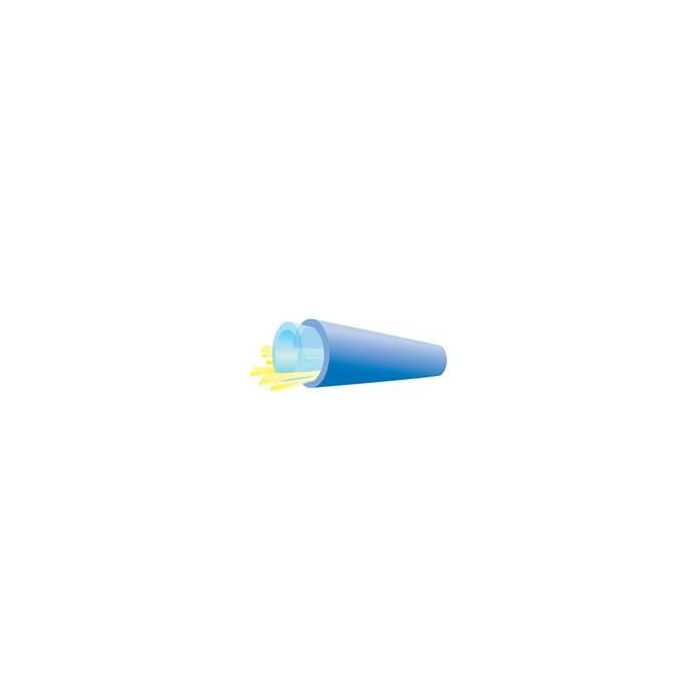

The TLC 3mm furcation tube is designed to provide robust mechanical protection when breaking out multi-fiber cables. This tubing is specifically engineered to accommodate 900µm tight-buffered fibers, ensuring secure and reliable termination for a wide variety of connector styles.
The cable construction features an inner tube surrounded by a layer of aramid yarn, which serves as a dielectric strength member, protected by a durable PVC outer jacket. This design provides the necessary structural integrity for demanding field deployments and internal cable management environments.
Key Features
-
High Compatibility
Designed to terminate to a wide range of connector styles, simplifying inventory needs. -
Fiber Protection
Engineered to safely accommodate 900µm tight-buffered fibers within the inner tube. -
Durable Construction
Features a PVC outer jacket for environmental resistance and internal protection. -
Integrated Strength
Includes aramid yarn as a dielectric strength member to provide added tensile durability. -
Pull String Included
Equipped with an internal pull string to facilitate efficient fiber installation through the tube. -
Easy Identification
Available in 12 standard TIA colors to assist in organized cable routing and management.
Applications
- Break-out of multi-fiber cables
- Connector termination applications
- Fiber optic cable management
- Inside plant cable routing
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F00FR3NUBPLM |
| Outer Diameter | 3mm |
| Color | Blue |
| Jacket Material | PVC |
| Strength Member | Aramid Yarn |
| Compatibility | 900µm tight buffered fibers |
Frequently Asked Questions
What is the purpose of furcation tubing?
Furcation tubing is used to transition tight-buffered fibers from a larger multi-fiber cable into individual protected 3mm tubes, making them easier to handle and terminate with connectors.
What is the jacket material?
The outer jacket is constructed from PVC.
Does this include a strength member?
Yes, the construction includes aramid yarn as a dielectric strength member for added durability.
Can this be used with 900µm fiber?
Yes, it is specifically designed to accommodate 900µm tight-buffered fibers.
Are there other colors available?
Yes, the product is available in all 12 standard TIA colors for easy identification.
