Overview

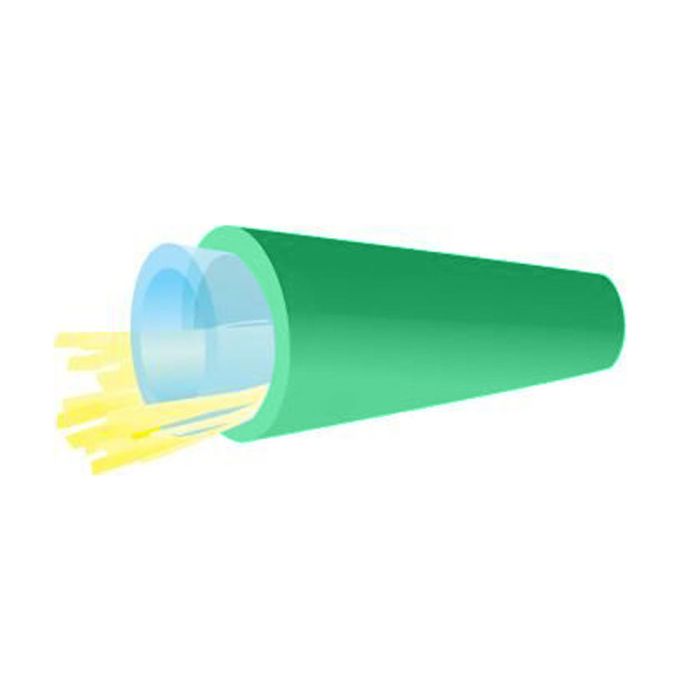

The TLC 3mm Furcation Tube provides essential physical protection for fiber optic strands when transitioning from multi-fiber cables to individual connectors. It is designed to safeguard 900µm tight-buffered fibers during termination processes, ensuring long-term integrity in high-density environments.
The construction features a protective inner tube reinforced with aramid yarn, enclosed within a durable PVC jacket. This design provides both mechanical strength and environmental protection, making it suitable for standard network installations and cable breakout applications.
Key Features
-
3mm Outer Diameter
Standard size compatible with a wide range of connector styles, simplifying inventory management. -
Aramid Yarn Reinforcement
Includes dielectric strength members that provide tensile support to the fiber strand. -
PVC Outer Jacket
Offers a durable outer layer that protects against abrasion and minor physical impacts. -
900µm Fiber Compatibility
Specifically engineered to accommodate standard tight-buffered fibers for consistent performance. -
Color-Coded Identification
Available in standard industry colors, enabling efficient network documentation and cable management. -
Integrated Pull String
Simplifies the process of threading fiber through the protective tubing during assembly.
Applications
- Fiber optic cable breakout kits
- Field termination of multi-fiber cables
- Rack-mount fiber enclosure management
- Patch panel organization
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F00FR3NUGPLM |
| Outer Diameter | 3mm |
| Color | Green |
| Jacket Material | PVC |
| Strength Member | Aramid Yarn |
| Fiber Compatibility | 900µm Tight Buffered |
Frequently Asked Questions
What is the purpose of furcation tubing?
It protects individual 900µm tight-buffered fibers from damage when they are broken out from a larger cable structure to be terminated with connectors.
Is the tubing color-coded?
Yes, this tubing comes in standard TIA colors for easy fiber identification in complex networks.
What is the inner diameter material?
The inner tube is available in either polypropylene or LDPE.
Does this include a pull string?
Yes, this specific part includes an integrated pull string to assist in fiber installation.
Can I order custom colors?
Yes, custom colors are available upon request.
