Overview

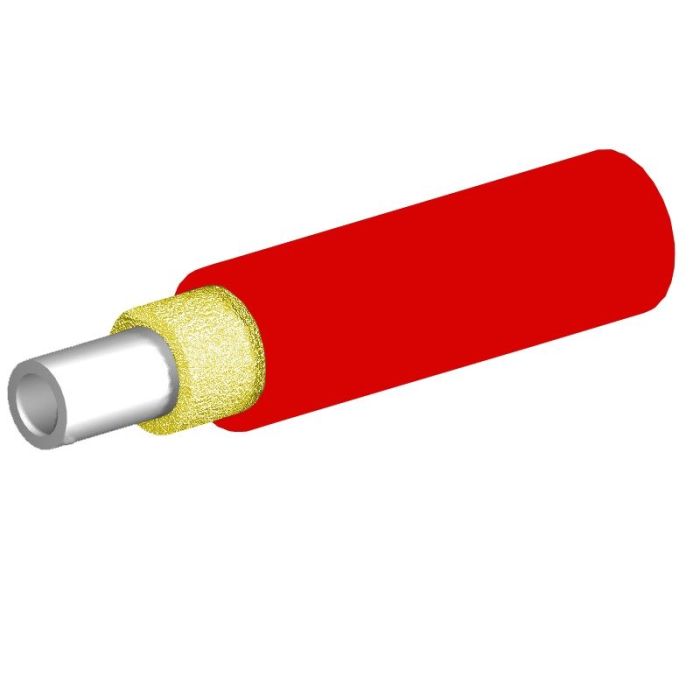

The TLC Furcation Tube is designed to provide robust protection for fiber optic cables during the breakout process. It is specifically engineered to terminate to a wide range of connector styles, making it a versatile component for field or factory installations. This tubing is designed to accommodate 900µm tight buffered fibers, ensuring a secure and protective housing.
Constructed with an inner tube and aramid fiber reinforcement, the furcation tube provides excellent dielectric strength and physical durability. The exterior is finished with a PVC jacket, offering protection against environmental stressors. This 3mm tubing is available in 12 standard TIA colors, allowing for efficient cable identification and management in complex network environments.
Key Features
-
Durable Construction
Features an inner tube surrounded by aramid fibers and a PVC outer jacket for enhanced protection. -
Wide Compatibility
Designed to accommodate standard 900µm tight buffered fibers. -
Connector Versatility
Compatible with a wide variety of industry-standard connector styles. -
Color Coding
Available in 12 standard TIA colors to facilitate organized cable identification. -
Integrated Pull String
Includes an integrated pull string to assist with the installation of buffered fibers through the tube. -
3mm Outer Diameter
Standardized 3mm sizing for consistent performance in breakout assemblies.
Applications
- Fiber optic cable breakout assemblies
- Protection of 900µm tight buffered fibers
- Network cable management
- Connector termination preparation
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F00FR3NUROPLM |
| Outer Diameter | 3mm |
| Fiber Compatibility | 900µm Tight Buffered |
| Jacket Material | PVC |
| Strength Member | Aramid Yarn |
| Color | Rose |
Frequently Asked Questions
What size fiber does this furcation tube accommodate?
This tube is designed to accommodate 900µm tight buffered fibers.
What material is the jacket made of?
The outer jacket is constructed from PVC.
Are other colors available?
Yes, this product is available in 12 standard TIA colors for identification purposes.
Does this include a pull string?
Yes, the tubing includes a pull string to aid in the insertion of the fiber.
Can this be used for indoor/outdoor applications?
This is primarily designed for standard breakout applications; please consult the technical data for specific environmental ratings.
