Overview
The TLC 3mm furcation tubing is a protective housing designed for the termination of multi-fiber cables. Its primary purpose is to provide durable, mechanical protection for delicate fiber strands during the breakout process, facilitating easier connectorization to a wide variety of industry-standard connector styles.

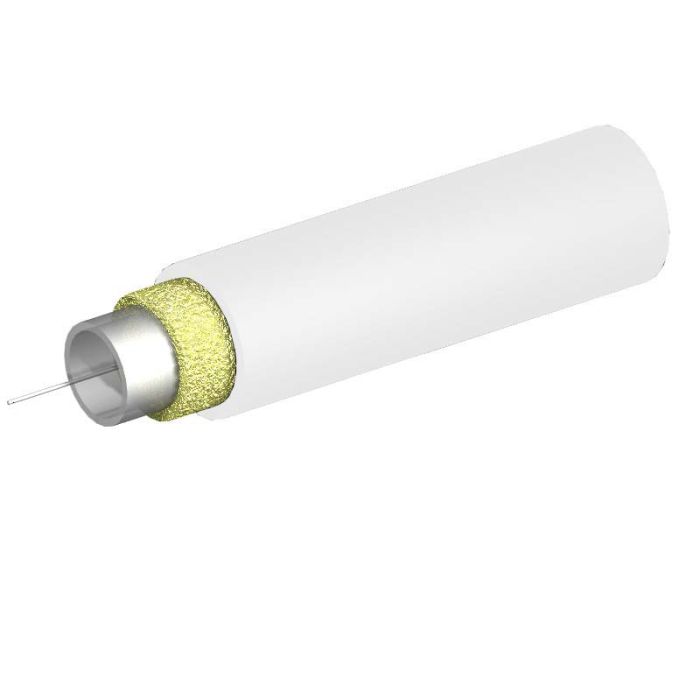

Constructed with an inner tube made of polypropylene or LDPE and reinforced with aramid yarn as a dielectric strength member, the assembly is shielded by a robust PVC jacket. This design is engineered for standard network environments where fiber management and protection are critical to maintaining signal integrity. The tubing is available in 12 standard TIA colors for intuitive identification in dense patching environments.
Key Features
-
Connector Compatibility
Designed to terminate to a wide range of connector styles for versatile deployment. -
Fiber Protection
Accommodates 900µm tight buffered fibers to prevent mechanical damage. -
Aramid Strength Member
Includes integrated aramid yarn to provide dielectric tensile strength and strain relief. -
Protective PVC Jacket
Features a durable PVC outer jacket for environmental resistance. -
TIA Color Coding
Available in 12 standard TIA colors for efficient circuit identification and management. -
Inner Tube Options
Inner tube composition is available in polypropylene or LDPE to suit specific application requirements.
Applications
- Breakout of multi-fiber cables
- Fiber optic patching and interconnection
- Connector termination preparation
- Cable management in distribution panels
Technical Specifications
| Specification | Value |
|---|---|
| Outer Diameter | 3mm |
| Jacket Material | PVC |
| Inner Tube Material | Polypropylene or LDPE |
| Strength Member | Aramid Yarn |
| Color | White |
Frequently Asked Questions
What is the purpose of the internal pull string?
The pull string is included to assist in the process of pulling fiber strands through the furcation tubing.
Can this tubing be used with 900µm fibers?
Yes, the tubing is specifically designed to accommodate 900µm tight buffered fibers.
Is the jacket material flame retardant?
The tubing uses a PVC jacket, which is standard for indoor breakout applications.
Are custom colors available?
Yes, custom colors are available upon request beyond the 12 standard TIA colors.
What does the aramid yarn do?
The aramid yarn acts as a dielectric strength member, providing necessary tensile strength to the assembly.
