Overview
The TLC High-Density Micro Distribution Cable is designed for space-constrained environments where high fiber counts and small cable diameters are critical. Featuring a 24-fiber configuration with Corning® SMF-28® Ultra singlemode fiber, this cable provides optimized performance for high-density network deployments.

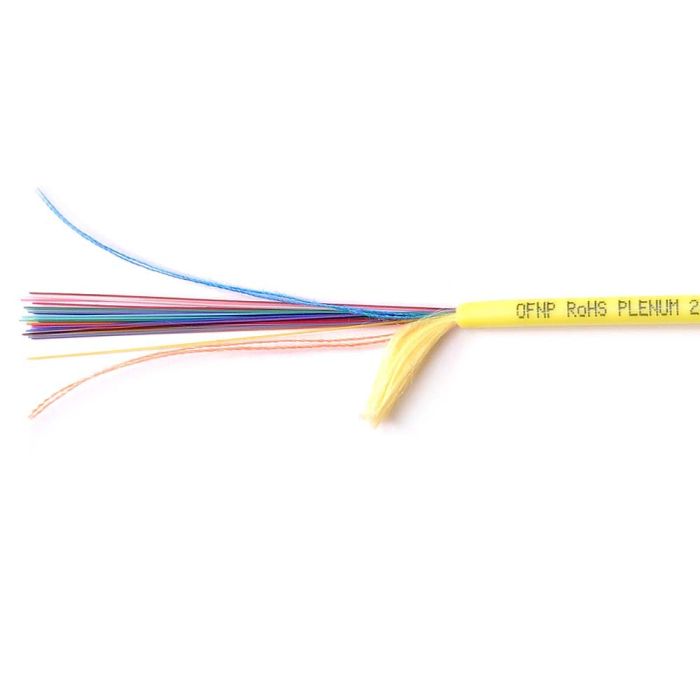

The construction consists of two bound bundles of 12 colored 250μm bare fibers, reinforced with aramid yarn and protected by a PVDF outer jacket. This cable is rated for Plenum (NFPA 262) applications, making it suitable for installation in air-handling spaces in accordance with NEC Article 770.
Key Features
-
High Density Design
Features a 2.95mm outer diameter, allowing for increased fiber density in tight spaces and conduits. -
Corning® SMF-28® Ultra Fiber
Utilizes industry-standard singlemode glass for low attenuation and high signal integrity. -
Plenum Rated (OFNP)
Meets NFPA 262 requirements for safe deployment in building air-handling plenums. -
250μm Color-Coded Fibers
Includes 12 TIA-standard color-coded fibers for efficient identification and rapid termination. -
Aramid Yarn Reinforcement
Provides tensile strength to protect fibers during installation and cable pulling. -
NEC Article 770 Compliant
Designed to meet strict National Electric Code safety standards for optical fiber cabling.
Applications
- High-density data center backbone cabling
- Plenum-rated indoor network installations
- Enterprise LAN/WAN backbones
- Limited-space conduit and raceway routing
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | TLC |
| Fiber Count | 24 |
| Fiber Type | Singlemode (Corning® SMF-28® Ultra) |
| Jacket Rating | Plenum (OFNP) / NFPA 262 |
| Outer Diameter | 2.95mm |
| Jacket Color | Yellow |
| Fiber Coating | 250μm |
Frequently Asked Questions
Is this cable suitable for outdoor use?
No, this cable is rated for Plenum (OFNP) indoor use only.
Can I order custom print on the jacket?
Yes, custom print options can be accommodated upon request.
What is the fiber type included?
This cable uses Corning® SMF-28® Ultra singlemode fiber.
Is the fiber color-coded?
Yes, the fibers follow 12 TIA standard colors.
Does this meet NEC standards?
Yes, it meets the requirements of National Electric Code (NEC) Article 770 for indoor optical cable installations.
