Overview
The TLC High-Density Micro Distribution Cable is designed for space-constrained environments where high fiber counts are required. Featuring 24 singlemode fibers in a compact 3.8mm outer diameter, this cable is engineered for high-density applications within data centers and enterprise networks.

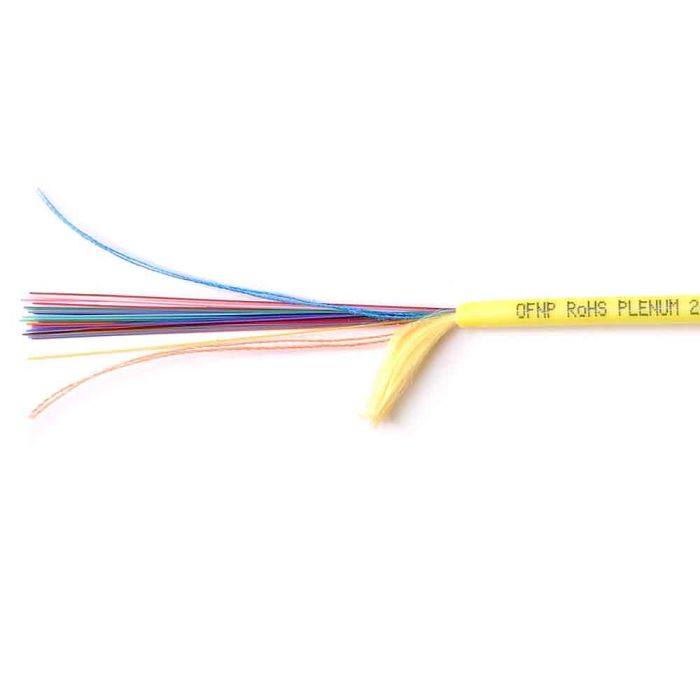

Constructed with two color-bound bundles of 12 fibers, aramid yarn for strength, and a durable PVDF plenum-rated jacket, the cable meets the NFPA 262 (Plenum) standard for fire safety. This construction ensures compliance with NEC Article 770 requirements for internal building installations.
Key Features
-
24-Fiber Singlemode Construction
Features two bundles of 12 fibers to support high-capacity data transmission. -
Small Outer Diameter
The 3.8mm OD allows for efficient installation in tight conduits and high-density cable pathways. -
Plenum Rated
NFPA 262 compliance ensures the cable meets rigorous fire safety standards for use in air handling spaces. -
Corning SMF-28 Ultra Fiber
Utilizes high-quality glass for low-loss performance and long-distance reliability. -
250μm Bare Fiber
Standardized coating size simplifies splicing and connectivity processes. -
NEC Article 770 Compliance
Designed to meet strict National Electric Code safety and installation standards.
Applications
- Data Center Infrastructure
- Enterprise Network Backbones
- High-Density Cable Management
- Plenum-rated indoor building installations
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | TLC |
| Fiber Count | 24 |
| Fiber Type | Singlemode (Corning SMF-28 Ultra) |
| Jacket Material | PVDF |
| Rating | Plenum (NFPA 262 / OFNP) |
| Cable Diameter | 3.8mm |
| Color | Yellow |
Frequently Asked Questions
What is the plenum rating for this cable?
The cable is UL Listed OFNP, meeting the NFPA 262 standard for plenum environments.
Does this cable include Corning fiber?
Yes, it is manufactured using Corning SMF-28 Ultra fiber.
How are the fibers organized?
The cable contains two bound bundles, each containing 12 color-coded fibers.
Is this cable suitable for outdoor use?
No, this is a plenum-rated cable designed for indoor use per NEC Article 770.
Can the cable be custom printed?
Standard print includes construction and footage markers; custom printing can be accommodated upon request.
