Overview

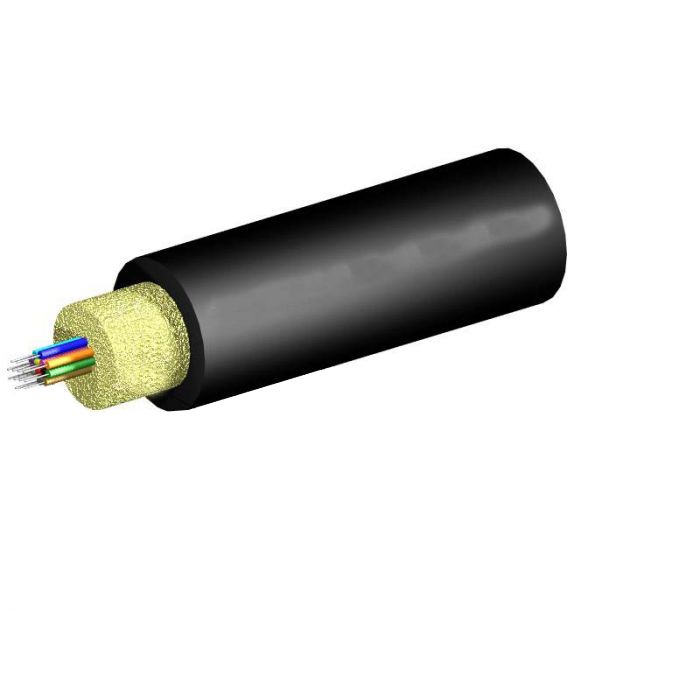

The TLC Indoor/Outdoor Cable is a 12-fiber, 50/125um multimode OM3 cable engineered for versatile deployment in both internal and external environments. This cable features a robust, UV-protected jacket and a gel-free water-blocked design, ensuring environmental resistance while simplifying the termination process.
By utilizing water-swellable yarn instead of traditional gel, this cable allows for faster, cleaner connectorization, saving time during installation. Designed for riser applications, it provides a stable and efficient optical path for high-bandwidth data transmission, utilizing Corning ClearCurve OM3 fiber.
Key Features
-
Gel-Free Design
Eliminates the need for messy gel cleaning during termination, facilitating faster setup and reduced labor costs. -
UV-Protected Jacket
Provides durability and longevity when exposed to outdoor environmental elements. -
Riser-Rated
Designed to meet fire safety standards for vertical installation pathways within buildings. -
High-Performance Fiber
Incorporates high-quality Corning ClearCurve multimode fiber for excellent bend performance and data integrity. -
Compact Construction
Central tube architecture provides a lightweight, flexible cable profile for easier pulling through conduits. -
Water Swellable Yarn
Provides effective moisture protection without the complications associated with traditional gel-filled buffer tubes.
Applications
- Indoor and outdoor building backbones
- Campus networks
- Inter-building communication links
- General purpose high-speed data networking
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | TLC |
| Fiber Count | 12 |
| Fiber Type | Multimode 50/125um OM3 |
| Rating | Riser |
| Jacket Color | Black |
| Construction | Gel-Free, Central Tube |
Frequently Asked Questions
Is this cable suitable for outdoor use?
Yes, it features a UV-protected jacket designed for both indoor and outdoor environments.
Does this cable contain gel?
No, it uses a gel-free design with water-swellable yarn to provide moisture protection.
What is the fiber count?
This specific part number provides 12 fibers.
What jacket rating does it have?
This cable is Riser-rated for appropriate vertical installation pathways.
Can I use standard fan-out kits with this cable?
Yes, it is designed to be compatible with standard fan-out kits.
