Overview

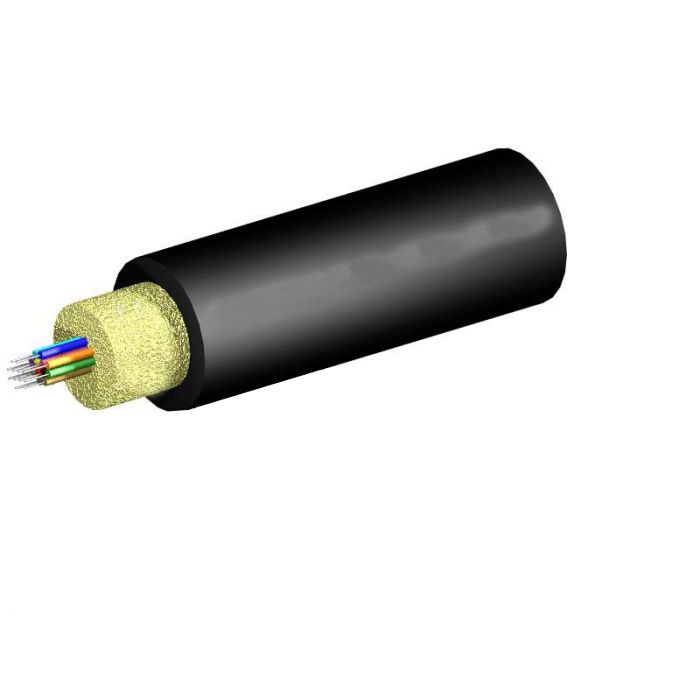

The TLC Indoor/Outdoor Cable is a 12-fiber, 50/125um multimode OM4 cable engineered for versatile deployment in both indoor and outdoor environments. Designed with a gel-free water-blocked construction, it eliminates the need for messy cleaning during the termination process, significantly reducing installation time and complexity.
This cable utilizes water-swellable yarn instead of traditional gel, providing effective moisture protection. Each fiber is color-coded to ensure rapid and accurate identification. Featuring a rugged, UV-protected jacket, it is suitable for diverse environmental conditions and comes with a Riser-rated flame retardant rating for building safety compliance.
Key Features
-
Gel-Free Construction
Uses water-swellable yarn to prevent moisture ingress without the mess, simplifying the connectorization process. -
12-Fiber Configuration
Provides high-capacity connectivity for demanding data center and campus network requirements. -
OM4 Multimode Fiber
Optimized for 10Gbps and higher data rate transmissions over extended distances. -
Riser Rated
Meets stringent fire safety standards for indoor vertical path installations. -
UV Protected Jacket
Ensures long-term durability and structural integrity when exposed to sunlight in outdoor environments. -
Color-Coded Fibers
Allows for quick, error-free identification during splicing and termination.
Applications
- Indoor/Outdoor campus backbones
- Data center interconnects
- Vertical Riser pathways
- FTTx installations
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | TLC |
| Fiber Count | 12 |
| Fiber Type | Multimode 50/125um (OM4) |
| Construction | Gel-Free Central Tube |
| Jacket Rating | Riser |
| Jacket Color | Black |
| Water Blocking | Water-swellable yarn |
Frequently Asked Questions
Is this cable suitable for outdoor use?
Yes, it features a UV-protected jacket specifically designed to withstand outdoor environmental conditions.
Does this cable contain gel?
No, it utilizes a gel-free, water-swellable yarn design which makes termination cleaner and faster.
What is the fiber type?
This cable uses 50/125um OM4 multimode fiber.
Can this be used in riser applications?
Yes, the cable has a Riser-rated jacket suitable for vertical building installations.
How are the fibers identified?
The bare fibers inside are color-coded to facilitate simple and fast installation.
