Overview

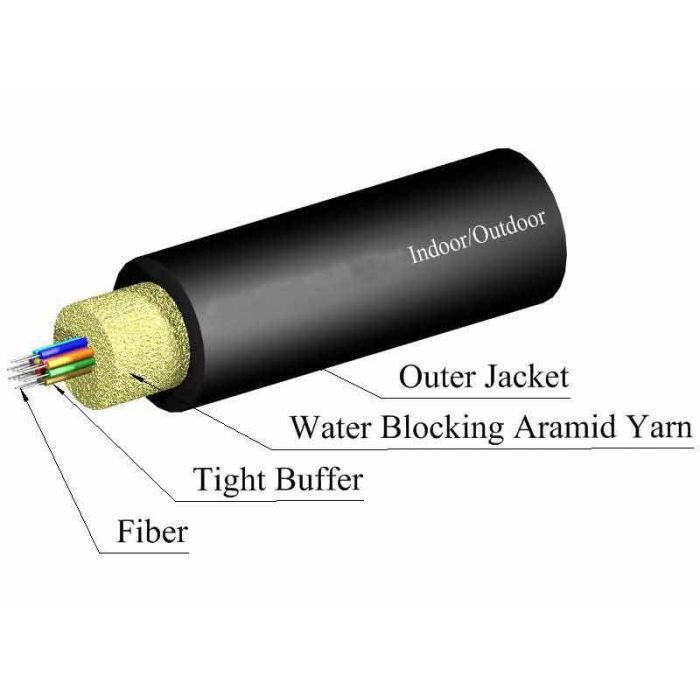

This TLC indoor/outdoor central tube cable is engineered for robust performance in both internal and external environments. Utilizing a gel-free, water-blocked design, it simplifies the connectorization process by replacing traditional gels with water-swellable yarn, ensuring clean and efficient installation. The cable features a durable, UV-protected outer jacket, making it suitable for demanding architectural and infrastructure requirements.
Equipped with 144 fibers of Corning® ClearCurve® OM4 multimode 50/125um glass, this cable provides high-bandwidth capacity for high-speed data transmission. The plenum-rated construction allows for versatile routing through air-handling spaces, providing a reliable and compliant solution for data center and campus backbone applications.
Key Features
-
Gel-Free Construction
Uses water-swellable yarn to prevent moisture ingress, facilitating faster and cleaner termination. -
Plenum Rating
Constructed with materials compliant for use in building plenums and air-handling spaces. -
Corning® ClearCurve® Fiber
Utilizes high-bend-radius OM4 multimode fiber to minimize signal loss in tight routing. -
UV-Protected Jacket
Rugged outer coating ensures long-term integrity when exposed to outdoor environmental elements. -
High Fiber Count
Contains 144 fibers to support high-density network architecture requirements. -
Versatile Deployment
Designed for both indoor and outdoor installations, reducing the need for transition splices at building entry points.
Applications
- Data center backbone cabling
- Campus area network backbones
- Building-to-building interconnections
- Plenum-rated indoor routing
- High-density fiber optic distribution
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | M50DL144C4NPBL25 |
| Fiber Count | 144 |
| Fiber Type | Multimode 50/125um (OM4) |
| Fiber Brand | Corning® ClearCurve® |
| Jacket Rating | Plenum |
| Construction | Gel-Free (Water-Blocked) |
| Outdoor Capability | UV Protected |
| Jacket Color | Black |
Frequently Asked Questions
Is this cable suitable for outdoor use?
Yes, it features a UV-protected rugged jacket designed for indoor and outdoor environments.
Does this cable contain gel?
No, it is a gel-free design that utilizes water-swellable yarn for water-blocking.
Can I use this in plenum spaces?
Yes, this cable is plenum-rated, making it safe for installation in air-handling ducts.
What fiber type is used?
It utilizes 50/125um OM4 multimode fiber, specifically Corning® ClearCurve®.
How many fibers are in this cable?
This specific part number features 144 fibers.
