Overview

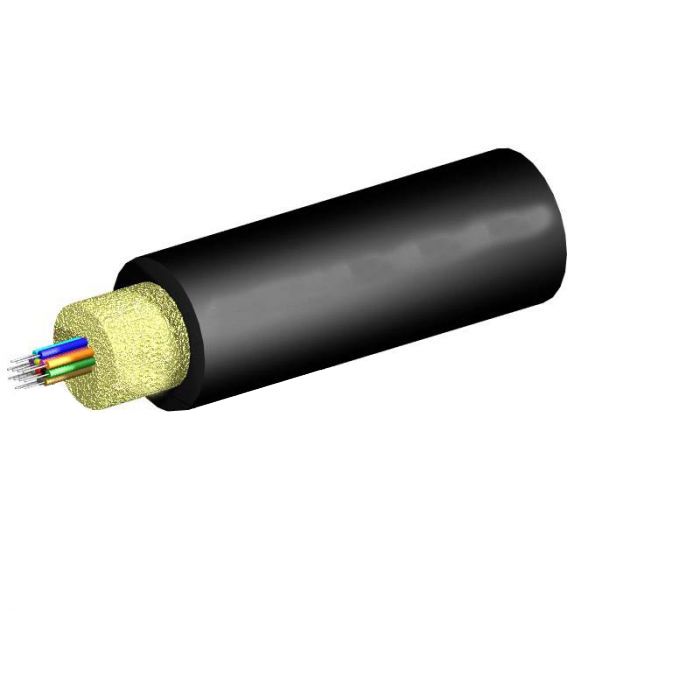

This TLC central tube indoor/outdoor cable features a 48-fiber count and is optimized for high-performance multimode data transmission. Utilizing Corning® ClearCurve® OM4 fiber, it provides exceptional bend resistance and reliable connectivity in demanding network environments. The cable is designed for seamless integration in both indoor and outdoor settings, making it a versatile choice for campus backbones and building infrastructure.
The construction incorporates a gel-free, water-swellable yarn design which simplifies the connectorization process by eliminating the need for cleaning messy gels. Housed in a durable, UV-protected riser-rated jacket, this cable ensures long-term performance and protection against environmental elements.
Key Features
-
Gel-Free Design
Uses water-swellable yarn instead of gel, simplifying connectorization and reducing installation time. -
Corning® ClearCurve® Fiber
Premium bend-insensitive OM4 fiber ensures high performance and reliability even in tight routing scenarios. -
Riser Rated
Suitable for vertical installation in building shafts, meeting rigorous safety standards for indoor use. -
UV Protected Jacket
Rugged outer sheath enables reliable outdoor performance by preventing degradation from solar exposure. -
48-Fiber Count
Provides high-density capacity to support expanding data center and network needs. -
Multimode 50/125um
Standard core and cladding dimensions ensure broad compatibility with existing fiber optic equipment.
Applications
- Building backbone installations
- Campus area networks
- Indoor/outdoor transition points
- Data center cabling
- Network infrastructure upgrades
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | TLC |
| Fiber Count | 48 |
| Fiber Type | Multimode 50/125um OM4 |
| Fiber Technology | Corning® ClearCurve® |
| Jacket Rating | Riser |
| Design | Gel-Free (Water Swellable Yarn) |
| Color | Black |
Frequently Asked Questions
What is the benefit of a gel-free design?
The gel-free design uses water-swellable yarn, which makes the fiber easier to clean and prepare for termination, resulting in faster and cleaner installations.
Is this cable suitable for outdoor use?
Yes, it features a rugged, UV-protected jacket that allows it to be used in outdoor environments.
Does this cable support tight bend radii?
Yes, it utilizes Corning® ClearCurve® OM4 fiber, which is specifically designed to be bend-insensitive and robust for challenging routing applications.
Is the jacket rated for indoor building use?
Yes, the cable is Riser-rated, making it appropriate for vertical runs within a building.
What is the fiber core/cladding size?
This cable uses standard 50/125um multimode fiber.
