Overview

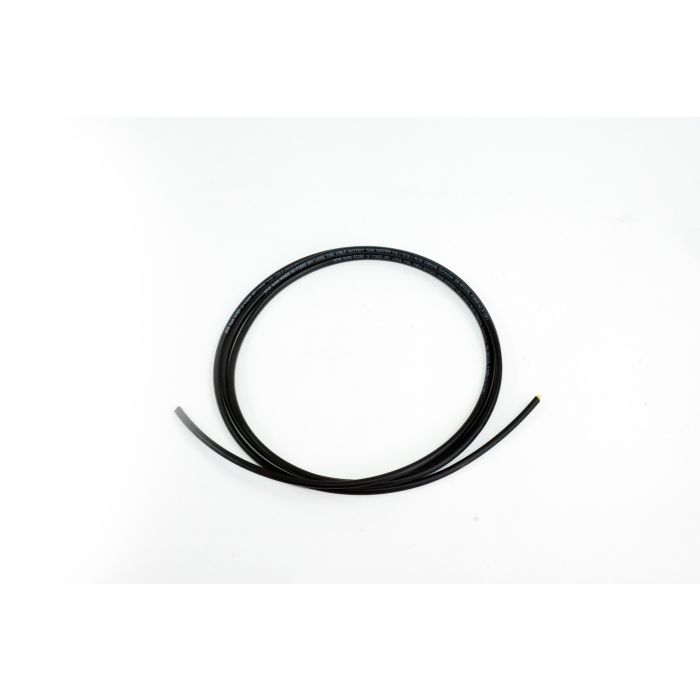

The TLC Indoor/Outdoor Fiber Optic Cable is a robust, high-performance solution designed for versatility in both interior and exterior cabling environments. Featuring a 12-fiber configuration, this multimode 62.5/125um OM1 cable is engineered for reliable signal transmission in building backbones and campus network applications.
This cable utilizes a gel-free, water-blocked design, which replaces traditional messy gels with water-swellable yarns. This construction significantly accelerates the connectorization process, reducing labor time during installation. Protected by a rugged, UV-resistant jacket, it is built to withstand demanding environmental conditions, while the riser-rated design ensures compliance with fire safety codes for indoor vertical pathways.
Key Features
-
Gel-Free Water Blocked Design
Eliminates the need for cleaning messy gels, facilitating faster, cleaner connectorization and termination. -
Multimode OM1 Fiber
Provides reliable performance for standard short-range data networking applications. -
UV-Protected Rugged Jacket
Ensures long-term durability when exposed to sunlight in outdoor or transitional environments. -
Riser Rated
Approved for installation in vertical riser pathways within buildings, meeting safety standards. -
Color-Coded Sub-Units
Includes 2.5mm sub-units with colored fibers for rapid and accurate identification during installation. -
Corning InfiniCor Fiber
Incorporates high-quality optical fiber for consistent attenuation and reliable data throughput.
Applications
- Building backbone cabling
- Campus network interconnections
- Indoor/outdoor transition pathways
- Riser installations
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | TLC |
| Fiber Count | 12 |
| Fiber Type | Multimode 62.5/125um (OM1) |
| Jacket Material | UV-Resistant, Riser Rated |
| Construction | Gel-Free, Water Swellable Yarn |
| Sub-Unit Size | 2.5mm |
Frequently Asked Questions
Is this cable suitable for outdoor use?
Yes, the cable features a UV-protected rugged jacket, making it suitable for both indoor and outdoor environments.
Does this cable contain gel?
No, it utilizes a gel-free design with water-swellable yarn to simplify the termination process.
What is the fiber type?
This cable uses multimode 62.5/125um OM1 fiber with Corning InfiniCor 300 performance.
Is this cable riser-rated?
Yes, it is designed for use in riser applications.
How many fibers are in this cable?
This specific part number features 12 fibers.
