Overview

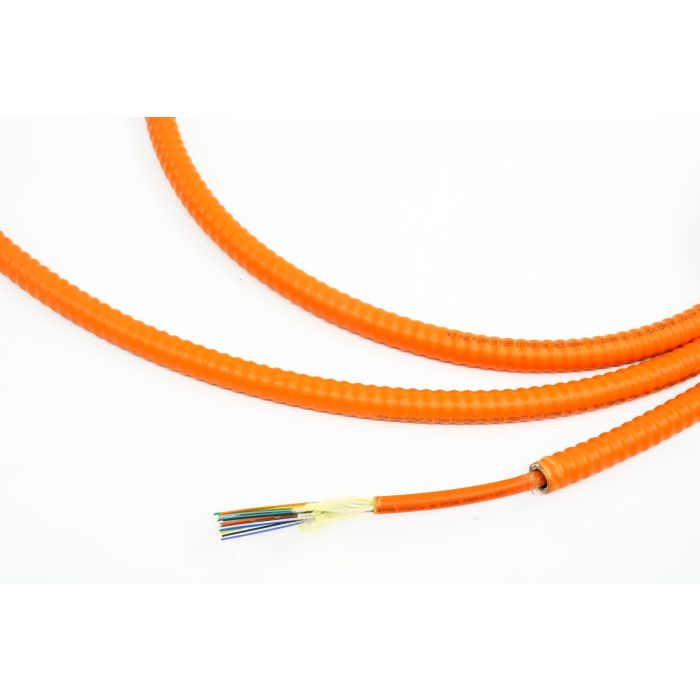

This TLC indoor/outdoor distribution cable features 24 multimode 62.5/125um fibers protected by aluminum interlocking armor. Designed for versatility, this cable is suitable for both internal and external environments and is rated for plenum installations. It incorporates Corning® InfiniCor®300 optical fiber for consistent signal transmission.
Key Features
- Aluminum Interlocking Armor: Provides robust mechanical protection for the internal fibers, eliminating the need for separate conduit installation.
- Plenum-Rated Jacket: Constructed with materials suitable for installation in building air-handling spaces, meeting safety requirements for flame spread and smoke generation.
- Indoor/Outdoor Rating: Engineered for use in both interior and exterior environments, allowing for continuous cable runs between building locations.
- 24-Fiber Configuration: Contains 24 individual 900um tight-buffered fibers, facilitating high-density signal distribution.
- Corning® InfiniCor®300 Fiber: Utilizes 62.5/125um multimode optical fiber from a recognized manufacturer to maintain specified transmission characteristics.
Technical Specifications
| Attribute | Specification |
|---|---|
| Fiber Count | 24 |
| Fiber Type | Multimode 62.5/125um (OM1) |
| Fiber Brand | Corning® InfiniCor®300 |
| Construction | Distribution |
| Armor Type | Aluminum Interlocking Armor |
| Jacket Rating | Plenum |
| Outer Diameter (OD) | 7.8mm |
| Jacket Color | Orange |
| Buffered Fiber Size | 900um |
