Overview

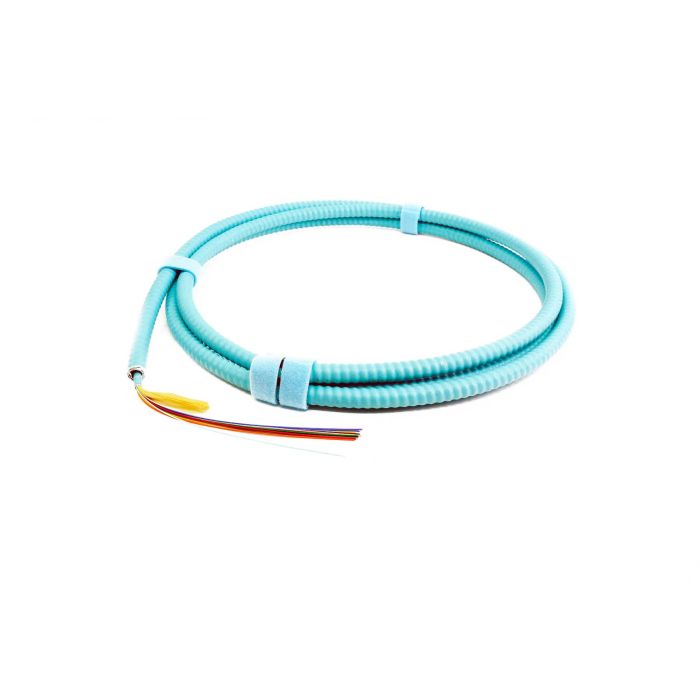

The TLC Micro-Distribution Cable is engineered for high-density indoor environments where space optimization is critical. Utilizing 12-fiber ClearCurve multimode 50/125um OM4 fiber, this cable is designed to provide robust performance in data center and premise network backbones.
This version features aluminum interlocking armor, providing enhanced physical protection for the internal fibers in demanding routing scenarios. The plenum-rated jacket ensures compliance with stringent fire safety codes for installation in air-handling spaces.
Key Features
-
High-Density Design
Optimized for space-constrained environments to maximize rack and pathway utilization. -
ClearCurve OM4 Fiber
Advanced bend-insensitive multimode fiber technology for high-bandwidth data transmission. -
Aluminum Interlocking Armor
Provides a crush-resistant protective layer for secure cable runs in exposed areas. -
Plenum Rated
Constructed with flame-retardant materials suitable for installation in plenum air-handling spaces. -
12-Fiber Configuration
Features 12 fibers arranged for efficient termination and connectivity. -
Multimode 50/125um Core
Optimized for short-to-medium reach 10G and 40G/100G network applications.
Applications
- Data center backbones
- Premise network installations
- Air-handling plenums
- High-density fiber distribution
- Areas requiring physical cable protection
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Type | Multimode 50/125um (OM4) |
| Fiber Technology | ClearCurve |
| Jacket Rating | Plenum |
| Armor | Aluminum Interlocking |
| Outer Diameter | 11.6mm |
Frequently Asked Questions
What does the armor provide?
The aluminum interlocking armor provides significant crush and impact protection for the fiber strands, making it ideal for high-traffic or exposed installations.
Is this cable plenum rated?
Yes, it is designed for use in plenum environments where strict fire safety standards apply.
What is the fiber type?
This cable uses 50/125um OM4 ClearCurve multimode fiber.
What is the fiber count?
This specific part number features 12 fibers.
Is the length customizable?
The cable is sold by the meter; please specify the total length required during ordering.
