Overview

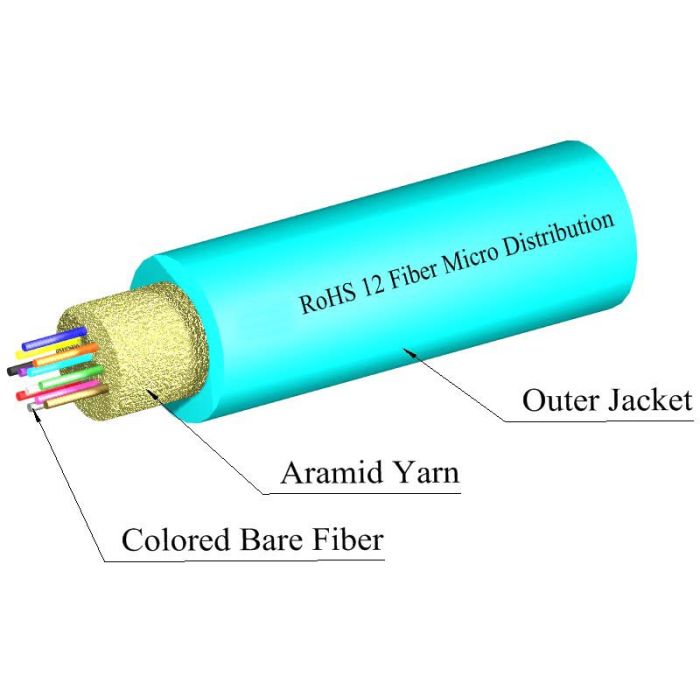

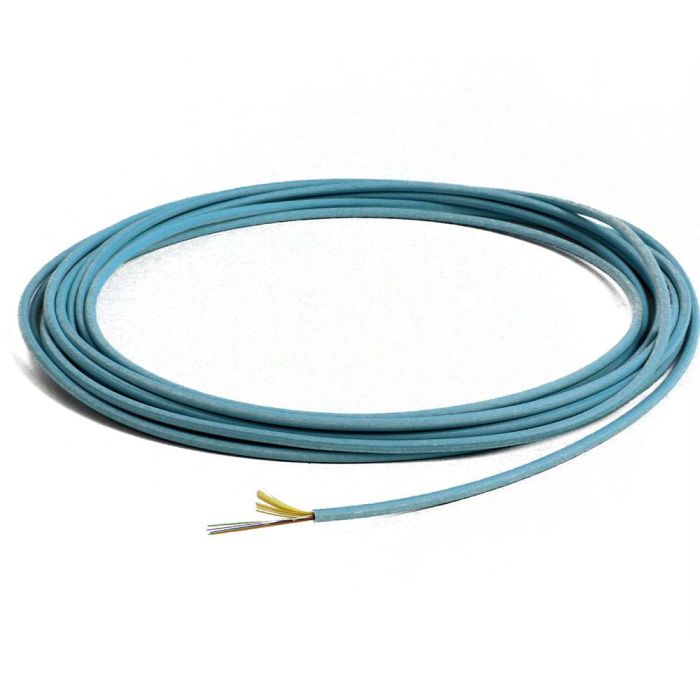

The TLC 12-fiber micro-distribution cable is engineered for high-density indoor environments where space optimization is critical. Featuring 50/125um OM4 ClearCurve multimode fiber, this cable provides bend-insensitive performance, making it an ideal choice for complex routing within data centers and premise networks.
Designed for durability and safety, the cable features a plenum-rated jacket, ensuring compliance with strict fire safety codes for indoor installations. The compact design allows for efficient space utilization in high-density pathways, while the sub-unit configuration ensures organized fiber management and simplified termination.
Key Features
-
High-Density Design
Compact micro-distribution construction allows for increased fiber density in tight spaces. -
Bend-Insensitive Fiber
Features ClearCurve multimode fiber technology to minimize signal loss during tight routing. -
Plenum Rated
Jacket material meets safety requirements for installation in air-handling spaces. -
12-Fiber Count
Optimized for efficient backbone cabling in enterprise and data center environments. -
50/125um OM4 Performance
Supports high-bandwidth applications including 10G, 40G, and 100G Ethernet. -
Simplified Routing
The small outer diameter facilitates easier cable management within congested racks.
Applications
- Data center backbone cabling
- Enterprise premise network installations
- High-density equipment interconnections
- Plenum-rated indoor cable pathways
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | TLC |
| Part Number | M50MD12C4NPA20 |
| Fiber Count | 12 |
| Fiber Type | Multimode 50/125um (OM4) |
| Fiber Technology | ClearCurve |
| Jacket Rating | Plenum |
Frequently Asked Questions
What is the primary benefit of the ClearCurve fiber?
ClearCurve technology provides enhanced bend-insensitivity, which reduces signal degradation in applications with tight bends or challenging cable paths.
Is this cable suitable for outdoor use?
No, this cable is designed specifically for indoor use with a plenum-rated jacket.
Can I order this with an armor jacket?
Yes, this series is available with or without aluminum interlocking armor. Please contact support to specify your requirements.
What is the fiber count per sub-unit?
For fiber counts over 12, the fibers are grouped in sub-units of 12 fibers each.
Is this cable available in other jacket ratings?
Yes, Riser and LSZH jackets are available upon request.
