Overview

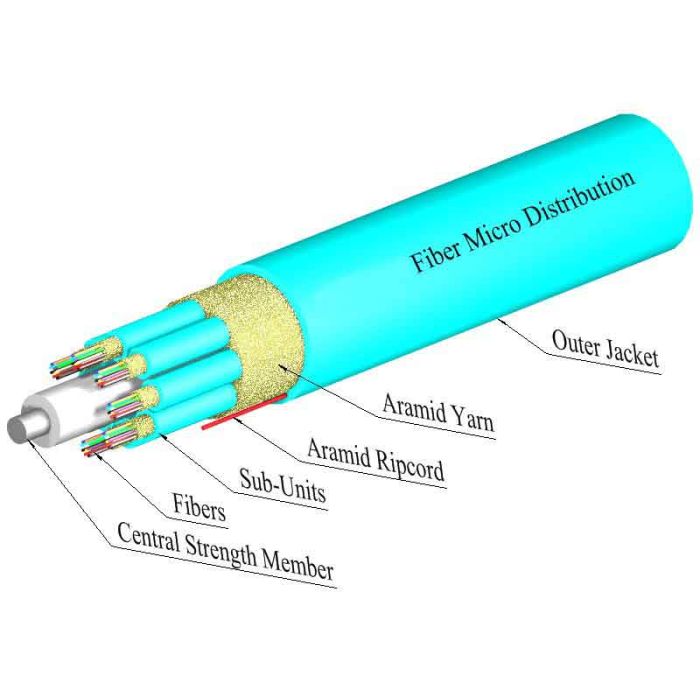

The TLC Micro-Distribution Cable is a high-density fiber optic solution engineered for indoor environments where space optimization is critical. Designed for data centers and premise network infrastructures, this cable features 144 multimode 50/125um (OM3) fibers, utilizing advanced bend-insensitive ClearCurve technology to maintain signal integrity in compact routing scenarios.
The cable is constructed with a plenum-rated jacket, ensuring compliance with stringent building fire safety codes for air-handling spaces. For organizational efficiency, fiber counts exceeding 12 are systematically grouped into subunits, simplifying cable management and termination processes during installation.
Key Features
-
High-Density Design
Optimized for installations where space is at a premium, such as high-capacity data center racks. -
Bend-Insensitive Fiber
Utilizes ClearCurve technology to minimize signal loss caused by tight bends during routing. -
Plenum Rated
Jacket material meets safety standards for installation in air-handling plenums. -
Subunit Organization
Fibers are grouped in subunits of 12 for faster, more accurate identification and termination. -
144 Fiber Count
Supports large-scale data transmission requirements in enterprise networks. -
Multimode OM3 Performance
Optimized for 10 Gigabit Ethernet applications over extended distances.
Applications
- Data Centers
- Premise Networks
- High-Density Fiber Routing
- Indoor Backbone Infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Cable Type | Micro-Distribution |
| Fiber Count | 144 |
| Fiber Mode | Multimode 50/125um (OM3) |
| Fiber Technology | ClearCurve |
| Jacket Rating | Plenum |
| Jacket Color | Aqua |
Frequently Asked Questions
What is the primary use for this cable?
This cable is intended for indoor applications, specifically within data centers and enterprise premise networks where high fiber density and limited space are factors.
Does this cable meet fire safety standards?
Yes, it features a plenum-rated jacket, making it suitable for use in air-handling spaces.
How are the fibers organized within the cable?
Fibers are arranged in subunits of 12 for easier identification and cable management.
Is the fiber bend-insensitive?
Yes, this cable incorporates ClearCurve technology to maintain performance even when subjected to tight bends.
Are other jacket ratings available?
Riser and LSZH jackets are available upon request.
