Overview

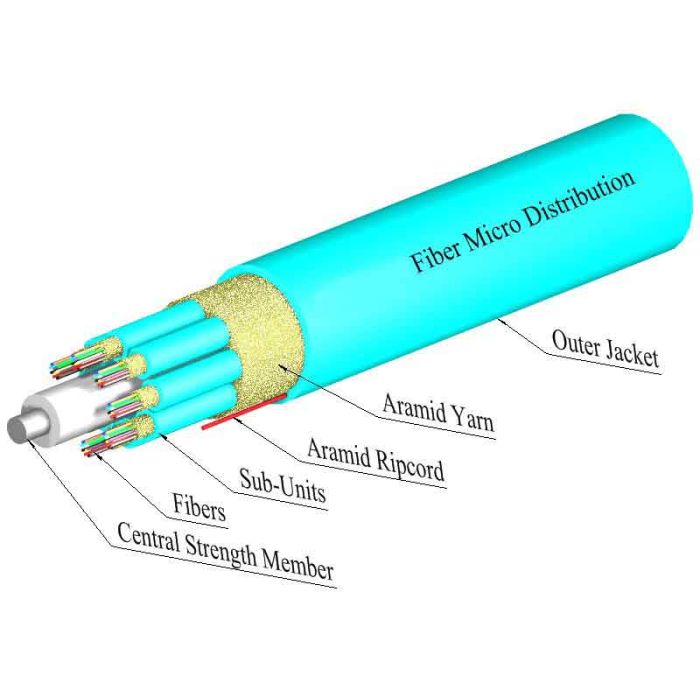

This TLC Micro-Distribution cable is designed for high-density indoor fiber optic installations where space optimization is critical. Featuring a 144-fiber count, it is engineered for use in data centers and premise networks where efficient cable management is required.
The cable utilizes ClearCurve multimode 50/125um (OM4) fiber, providing enhanced bend performance and signal integrity in tight spaces. Constructed with a plenum-rated jacket, it meets stringent fire safety standards for installation in air-handling spaces. The 144-fiber design organizes fibers into subunits of 12 for simplified identification and termination.
Key Features
-
High-Density Design
Supports 144 fibers within a compact profile, ideal for space-constrained rack and pathway environments. -
ClearCurve Multimode Fiber
Advanced bend-insensitive OM4 fiber ensures consistent performance in environments with tight routing. -
Plenum Rated
Jacket material meets safety requirements for installation within HVAC plenums and air ducts. -
Subunit Organization
Fibers are grouped into 12-fiber subunits to streamline the identification, routing, and termination process. -
Indoor Optimized
Engineered specifically for data center and enterprise premise network backbone applications. -
Scalable Architecture
Part of a modular series supporting fiber counts from 2 to 144 for various networking needs.
Applications
- Data center high-density backbones
- Enterprise premise network distribution
- HVAC plenum pathway installations
- Internal equipment rack fiber routing
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 144 |
| Fiber Mode | Multimode 50/125um (OM4) |
| Fiber Type | ClearCurve |
| Jacket Rating | Plenum |
| Subunit Configuration | 12-fiber subunits |
Frequently Asked Questions
Is this cable suitable for outdoor use?
No, this cable is designed for indoor applications. Please consult our outdoor cable section for appropriate exterior solutions.
Can I order this cable with an armored jacket?
Yes, this product series is available with or without aluminum interlocking armor by request.
Are other jacket ratings available?
Yes, Riser and LSZH jackets are available upon request.
How are the fibers organized within the cable?
Fiber counts over 12 are organized into subunits of 12 fibers for easier management.
Is this an OM4 cable?
Yes, this cable features 50/125um OM4 ClearCurve multimode fiber.
