Overview
The TLC Micro-Distribution cable is designed for high-density indoor networking environments where space is at a premium. This 24-fiber multimode cable features 50/125um OM3 fiber, utilizing ClearCurve technology to provide enhanced bend insensitivity for challenging routing installations.

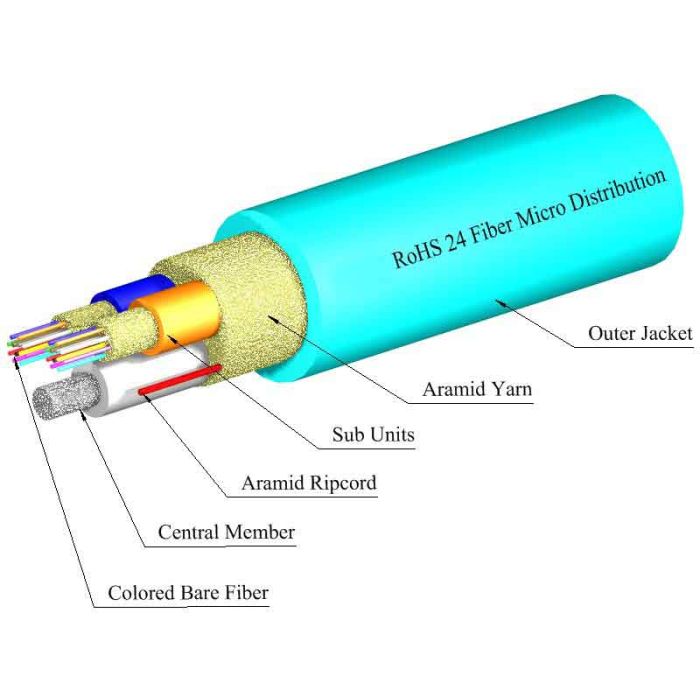

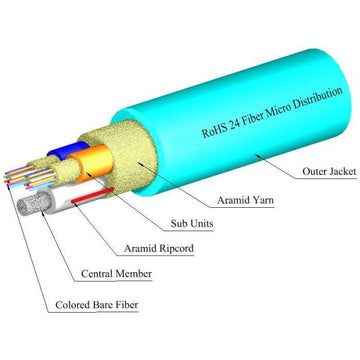

Constructed with a plenum-rated jacket, this cable is suitable for installation in air-handling spaces. The design incorporates sub-units of 12 fibers each, facilitating organized termination and management in data centers and premise network backbones.
Key Features
-
High-Density Design
Optimized for space-constrained environments such as data center racks and premise backbones. -
OM3 Multimode Fiber
Supports high-speed data transmission for 10 Gigabit Ethernet applications. -
ClearCurve Technology
Features bend-insensitive performance, reducing signal loss during tight routing. -
Plenum Rated
Jacket material is compliant for use in building plenum spaces as required by local safety codes. -
Sub-unit Construction
Fibers are organized in 12-fiber sub-units to simplify cable management and connectorization. -
24-Fiber Count
Provides sufficient capacity for high-bandwidth backbone connectivity.
Applications
- Data Center backbone cabling
- Premise network infrastructure
- High-density fiber distribution
- Indoor networking environments
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 24 |
| Fiber Mode | Multimode (OM3) |
| Core/Cladding | 50/125um |
| Jacket Rating | Plenum |
| Fiber Type | ClearCurve |
| Sub-unit Configuration | 12-fiber sub-units |
Frequently Asked Questions
Is this cable suitable for outdoor use?
No, this is a plenum-rated indoor cable and should not be used in outdoor environments.
How are the fibers organized?
The cable uses sub-units, where fibers are grouped in sets of 12 for easier handling.
What is the fiber core size?
This cable uses 50/125um multimode fiber.
Does this cable support 10G applications?
Yes, it utilizes OM3 fiber, which is optimized for 10 Gigabit Ethernet performance.
Is the jacket rated for plenum spaces?
Yes, this cable features a plenum-rated jacket, making it suitable for installation in air-handling plenums.
