Overview
The TLC Micro-Distribution Cable is a high-density, 24-fiber multimode cable engineered for indoor environments where space is at a premium. Featuring 50/125um OM4 ClearCurve fiber, this cable is designed to support robust bandwidth requirements in data centers and premise network installations.

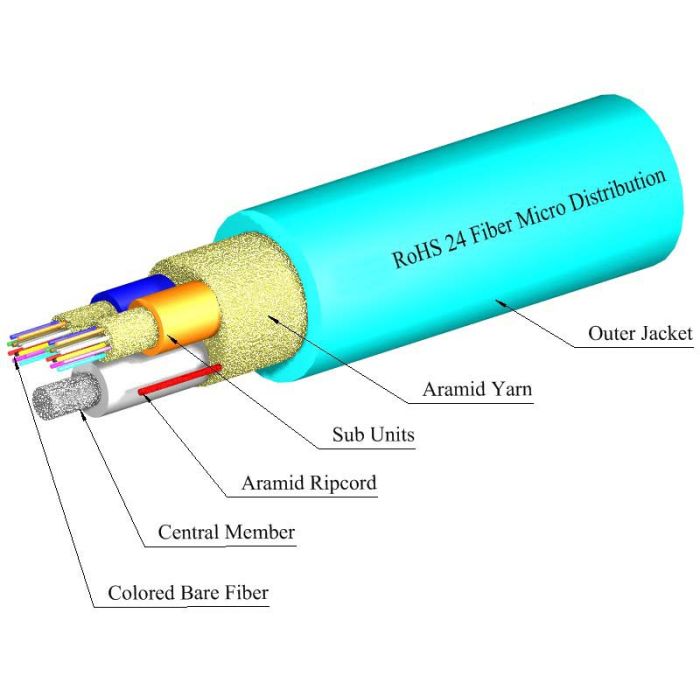

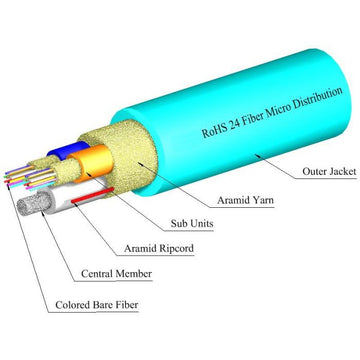

The cable features a plenum-rated jacket, ensuring compliance with strict fire safety codes for air handling spaces. Its micro-distribution construction organizes fibers into subunits of 12 for efficient routing and termination, offering a balance of density and manageable cable diameter.
Key Features
-
High-Density Design
Compact construction allows for increased fiber density in confined spaces such as cable trays and pathways. -
OM4 ClearCurve Fiber
Provides enhanced bend performance and high bandwidth capacity for reliable data transmission in enterprise networks. -
Plenum-Rated Jacket
Ensures suitability for installation in plenum air spaces as required by building fire codes. -
Organized Subunits
Fibers are grouped into 12-fiber subunits, simplifying cable management and field termination processes. -
Multimode 50/125um Core
Standardized core size ensures broad compatibility with existing multimode equipment and transceivers. -
Versatile Deployment
Designed for backbone and horizontal cabling in data centers, server rooms, and enterprise building networks.
Applications
- Data Center backbone cabling
- Premise network horizontal distribution
- Plenum air handling space installations
- High-density fiber management systems
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 24 |
| Fiber Type | Multimode 50/125um (OM4) |
| Fiber Technology | ClearCurve |
| Jacket Rating | Plenum |
| Construction | Micro-Distribution |
| Subunit Size | 12 Fibers per subunit |
| Jacket Color | Aqua |
Frequently Asked Questions
What does the OM4 classification mean?
OM4 is a laser-optimized multimode fiber specification providing high bandwidth for 10Gbps, 40Gbps, and 100Gbps network applications.
Can this cable be used in riser spaces?
While this specific cable is plenum-rated, which is generally acceptable for riser applications, please confirm local building codes regarding installation requirements.
How are the 24 fibers organized?
The 24 fibers are arranged in two 12-fiber subunits to simplify identification and termination during installation.
What is ClearCurve fiber?
ClearCurve is a bend-insensitive fiber technology that minimizes signal loss even when the cable is tightly routed or bent.
Is the jacket fire-resistant?
Yes, the plenum jacket is specifically rated for use in air handling spaces, meeting rigorous flame-spread and smoke-density requirements.
