Overview

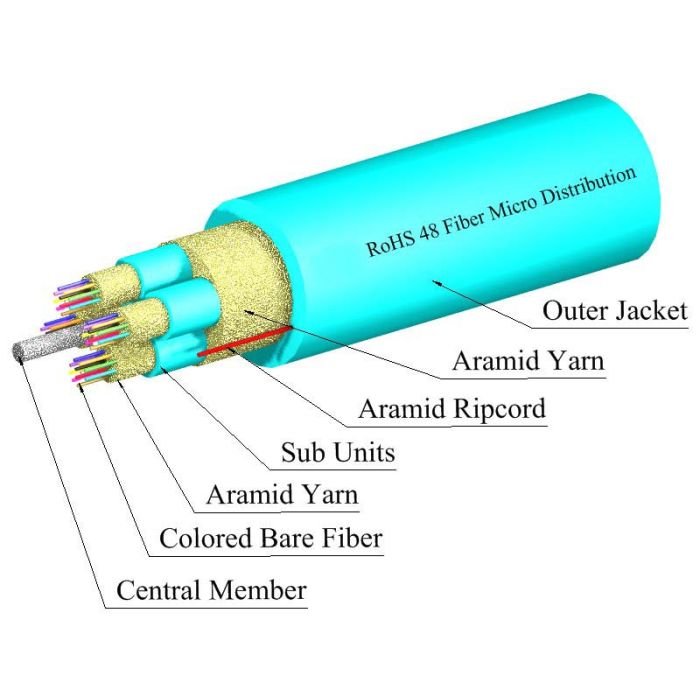

The TLC Micro-Distribution Cable is a high-density, space-efficient fiber optic solution designed for indoor applications. Featuring 48 fibers, this cable is ideal for use in data centers and premise networks where efficient space management is critical for high-density infrastructure requirements.
Constructed for performance, this cable utilizes 50/125um OM3 multimode fiber with ClearCurve technology, ensuring enhanced macrobend performance. The cable features a plenum-rated jacket, making it suitable for air-handling spaces. Fibers are organized into 12-fiber subunits, simplifying termination and installation processes in complex network environments.
Key Features
-
High Density Design
Optimized for use in crowded pathways and data center environments to maximize rack space. -
ClearCurve Multimode Fiber
Features bend-insensitive performance, reducing signal loss caused by tight bends. -
Plenum Rated
Constructed with fire-resistant materials suitable for installation in plenum air-handling spaces. -
Organized Subunits
48 fibers are grouped into 12-fiber subunits, which significantly reduces preparation time during termination. -
Standard OM3 Performance
Provides 50/125um multimode performance, supporting high-speed data transmission. -
Aqua Jacket
Industry-standard color coding for easy identification of OM3 multimode cabling.
Applications
- Data Center backbone cabling
- Premise network distribution
- High-density fiber optic installations
- Indoor plenum-rated air spaces
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | TLC |
| Fiber Count | 48 |
| Fiber Type | Multimode 50/125um (OM3) |
| Fiber Technology | ClearCurve |
| Jacket Rating | Plenum |
| Jacket Color | Aqua |
| Construction | Micro-Distribution |
Frequently Asked Questions
What is the purpose of the 12-fiber subunits?
Subunits simplify the organization and termination of the 48 fibers, allowing technicians to manage smaller groups of fibers during installation.
Is this cable suitable for outdoor use?
No, this is a plenum-rated cable designed specifically for indoor environments.
Can I use this for 10GbE applications?
Yes, OM3 multimode fiber is optimized for high-speed 10 Gigabit Ethernet data transmission.
Does this cable include armor?
This specific part number does not include aluminum interlocking armor, though such options are available in the product family.
Are other jacket types available?
Yes, Riser and LSZH jackets can be provided upon request.
