Overview

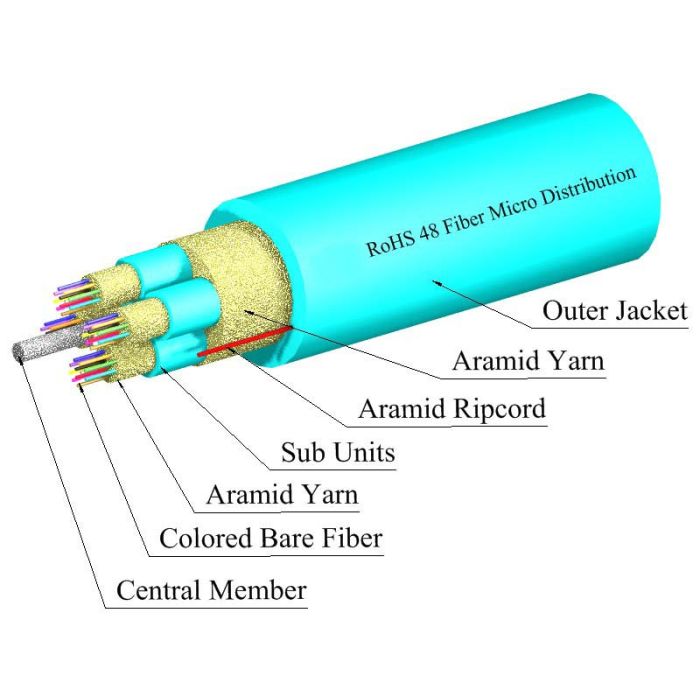

The TLC Micro-Distribution Cable is a high-density fiber optic solution designed specifically for indoor environments where installation space is restricted. It features a 48-fiber count constructed with 50/125um OM4 multimode fiber, utilizing ClearCurve bend-insensitive technology for enhanced performance in tight routing scenarios.
Engineered for premise networks and data center backbones, this cable utilizes a plenum-rated jacket to meet stringent fire safety requirements for air-handling spaces. The fiber is organized into subunits of 12 fibers each, facilitating efficient organization and termination. This robust cable design is suitable for various indoor pathways and spaces.
Key Features
-
High-Density Design
Optimized fiber arrangement allows for a high count within a small cable diameter, saving valuable space in conduits and trays. -
ClearCurve Bend-Insensitive Fiber
Utilizes advanced multimode fiber technology to minimize signal loss in tight bends and challenging cable routes. -
Plenum-Rated Jacket
Safety-rated for installation in air-handling plenums, ensuring compliance with building fire codes. -
Organized Subunits
Individual 12-fiber subunits simplify identification and speed up the termination process for technicians. -
OM4 Multimode Performance
Supports high-bandwidth 10 Gigabit and beyond networking applications over extended distances within the premise. -
Versatile Deployment
Designed for indoor data center environments and premise network distribution.
Applications
- Data center backbones
- Premise network distribution
- High-density indoor cabling
- Plenum air-handling space installations
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | TLC |
| Part Number | M50MD48C4NPA20A |
| Fiber Count | 48 |
| Fiber Type | Multimode 50/125um (OM4) |
| Fiber Technology | ClearCurve |
| Jacket Rating | Plenum |
| Jacket Color | Aqua |
Frequently Asked Questions
What is the fiber count for this cable?
This cable contains 48 fibers organized into subunits of 12.
Is this cable suitable for outdoor use?
No, this is a plenum-rated cable intended specifically for indoor premise environments.
Does this cable use bend-insensitive fiber?
Yes, it utilizes ClearCurve multimode fiber, which is designed to be bend-insensitive.
Are other jacket ratings available?
Yes, Riser and LSZH jackets are available upon request; please contact sales for availability.
Is this cable available with armor?
This specific part is non-armored, but Micro-Distribution cables in this series can be ordered with aluminum interlocking armor.
