Overview
The TLC Micro-Distribution Cable is an optimized fiber optic solution designed for high-density indoor environments where space efficiency is critical. Featuring 72 fibers, this cable is ideal for enterprise premise networks and data center backbones, providing a compact footprint without compromising on fiber count.

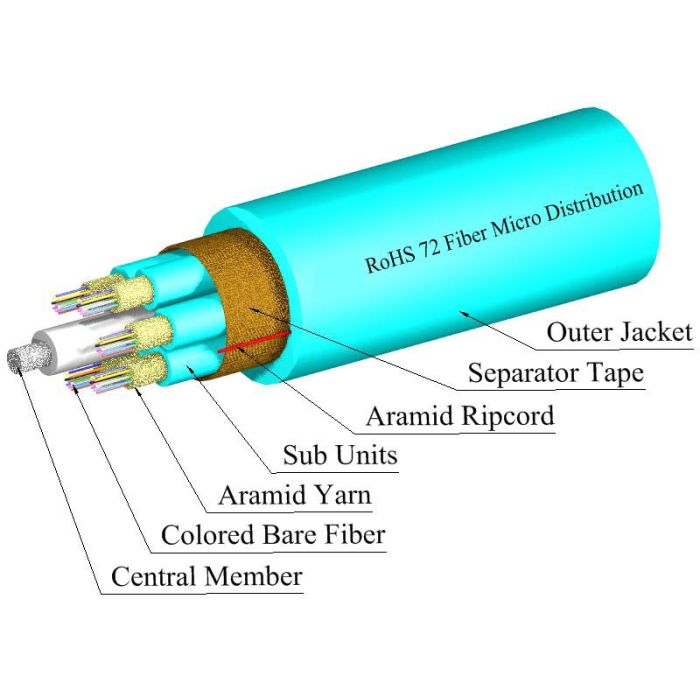

The cable construction includes subunits of 12 fibers, ensuring organized cable management and simplified termination. With a plenum-rated jacket, this cable is suitable for installation in air-handling spaces, meeting stringent building safety requirements for low smoke and flame resistance.
Key Features
-
High-Density Design
Compact construction allows for increased fiber counts in limited pathway spaces. -
Plenum Rated
Designed for use in air-handling plenums, meeting necessary fire safety codes. -
ClearCurve Fiber
Features bend-insensitive multimode fiber for improved signal integrity in tight routing. -
Subunit Organization
Fibers are grouped in 12-fiber subunits for organized identification and easier installation. -
Application Versatility
Suitable for both data center interconnections and general premise cabling. -
Aqua Jacket
Standard OM3 color coding for quick identification in the field.
Applications
- Data center backbones
- Enterprise LAN environments
- Premise network installations
- High-density rack interconnections
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 72 |
| Fiber Type | Multimode 50/125um (OM3) |
| Fiber Category | ClearCurve |
| Jacket Rating | Plenum |
| Jacket Color | Aqua |
| Configuration | Micro-Distribution |
Frequently Asked Questions
What does the OM3 designation mean for this cable?
OM3 indicates a laser-optimized multimode fiber capable of supporting 10 Gigabit Ethernet applications at specific distances.
Is this cable suitable for outdoor use?
No, this cable is specifically rated for indoor plenum applications and is not designed for outdoor environmental exposure.
How are the fibers organized within the cable?
The 72 fibers are structured into subunits of 12 fibers each to assist in efficient routing and termination.
What is the purpose of the Plenum rating?
The plenum rating signifies that the cable jacket meets low smoke and flame-spread requirements for installation in environmental air-handling spaces.
Can I order this cable with armor?
Yes, this distribution cable is available with or without aluminum interlocking armor upon request.
