Overview
The TLC Micro-Distribution Cable is engineered for high-density indoor environments where space is at a premium, such as data centers and premise networks. Featuring 72 fibers of 50/125um OM4 ClearCurve multimode glass, this cable is designed to provide reliable signal integrity in congested pathways.

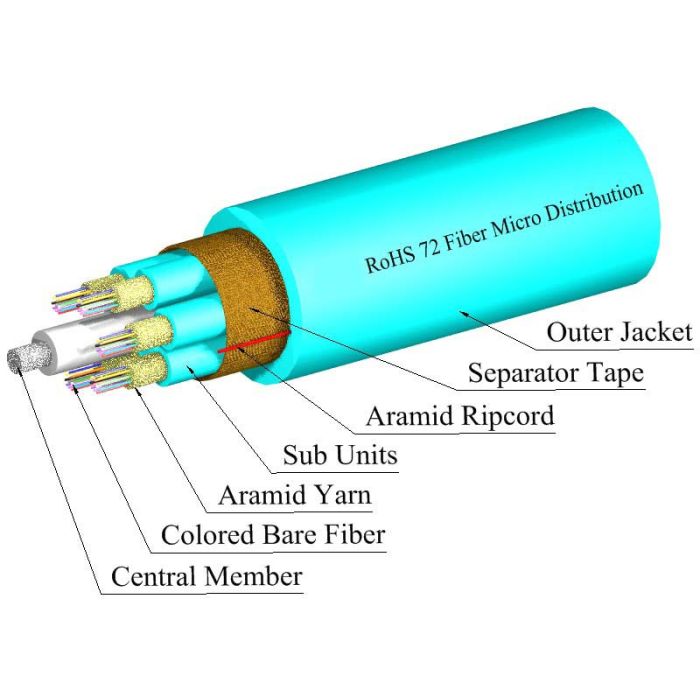

The cable construction includes 12-fiber subunits to simplify organization and termination. This plenum-rated cable is designed for installation in air-handling spaces, ensuring compliance with local fire safety codes for indoor deployments.
Key Features
-
High-Density Design
Compact construction supports up to 144 fibers, maximizing space in cable trays and conduits. -
OM4 Laser-Optimized Fiber
Features ClearCurve multimode fiber for enhanced bend-insensitivity and high-speed data performance. -
Plenum Rated Jacket
Safety-rated for installation in plenum air-handling spaces, reducing the need for additional protective conduit. -
Subunit Organization
Fiber counts over 12 are color-coded in 12-fiber subunits, streamlining identification and installation. -
Versatile Application
Ideal for data center backbones, enterprise networking, and premise wiring. -
Stocked Configuration
Ready-to-ship specification ensures rapid deployment for project requirements.
Applications
- Data center trunking
- Premise network backbones
- High-density cable pathways
- Indoor riser and plenum environments
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | TLC |
| Part Number | M50MD72C4NPA20A |
| Fiber Count | 72 |
| Fiber Type | Multimode 50/125um (OM4) |
| Jacket Rating | Plenum |
| Fiber Technology | ClearCurve |
Frequently Asked Questions
What does the OM4 rating indicate?
OM4 is a laser-optimized multimode fiber standard designed for 10Gbps, 40Gbps, and 100Gbps transmission speeds over longer distances compared to OM2 or OM3.
Is this cable suitable for outdoor use?
No, this is a plenum-rated cable designed for indoor use. Outdoor-rated cables require specific water-blocking and UV-resistant jackets.
Can I order this in a specific length?
Yes, this product is sold by the meter to meet your specific project length requirements.
Are other jacket types available?
Yes, riser-rated and Low Smoke Zero Halogen (LSZH) versions can be provided upon request.
How are the 72 fibers organized?
The fibers are grouped into 12-fiber subunits to facilitate easy identification and termination during the install process.
