Overview
The TLC Micro-Distribution Cable is a high-density fiber optic solution designed for indoor environments where space optimization is critical. Featuring 96 fibers in a 50/125um OM3 multimode configuration, this cable utilizes ClearCurve bend-insensitive technology, ensuring robust signal integrity in tight spaces and challenging routing paths.
Constructed with a plenum-rated jacket, this cable meets stringent fire safety requirements for installation in air-handling spaces. The design groups fibers into 12-fiber subunits, facilitating efficient organization and termination. It is an ideal choice for high-speed data centers, enterprise backbone cabling, and dense premise network environments.
Key Features
-
ClearCurve Multimode Fiber
Features bend-insensitive performance that minimizes signal loss in compact installations. -
96-Fiber Density
Provides high-capacity data transmission in a reduced-diameter cable profile. -
Plenum-Rated Jacket
Meets safety standards for use in plenum air spaces within commercial buildings. -

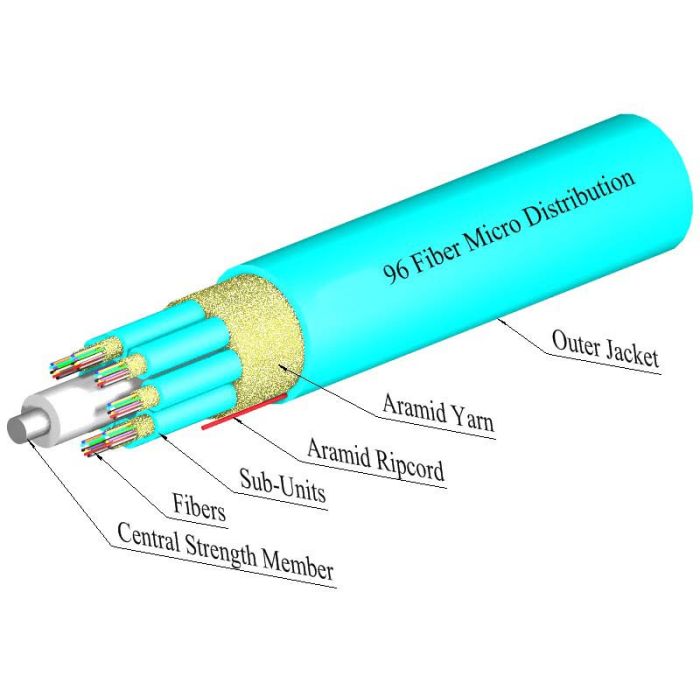

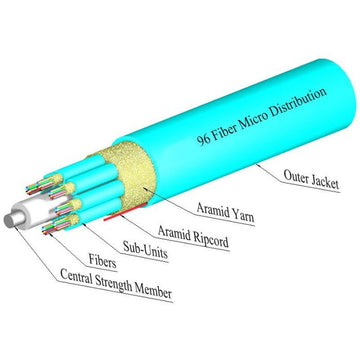

Subunit Organization
Fiber strands are grouped into 12-fiber subunits to simplify identification and installation. -
Indoor Optimization
Engineered specifically for data center and enterprise premise applications. -
OM3 Performance
Supports high-bandwidth 10 Gigabit Ethernet networking requirements.
Applications
- Data Center backbone cabling
- Enterprise premise networks
- High-density equipment interconnections
- Plenum-rated indoor routing paths
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | TLC |
| Part Number | M50MD96CGNPA20A |
| Fiber Count | 96 |
| Fiber Type | Multimode 50/125um (OM3) |
| Fiber Technology | ClearCurve |
| Jacket Rating | Plenum |
| Application Environment | Indoor |
Frequently Asked Questions
What is the primary benefit of ClearCurve fiber?
ClearCurve fiber is bend-insensitive, which significantly reduces light loss when the cable is routed around tight corners or in confined spaces.
Is this cable suitable for outdoor use?
No, this is an indoor-rated plenum cable and is not intended for outdoor environments.
How are the 96 fibers organized?
The fibers are grouped into subunits of 12 fibers each for easier management and termination.
Does this cable meet fire codes for air plenums?
Yes, it is manufactured with a plenum-rated jacket specifically for use in air-handling spaces.
Can I order this with armor?
This model is available as standard; however, the manufacturer offers micro-distribution cables with optional aluminum interlocking armor upon request.
