Overview

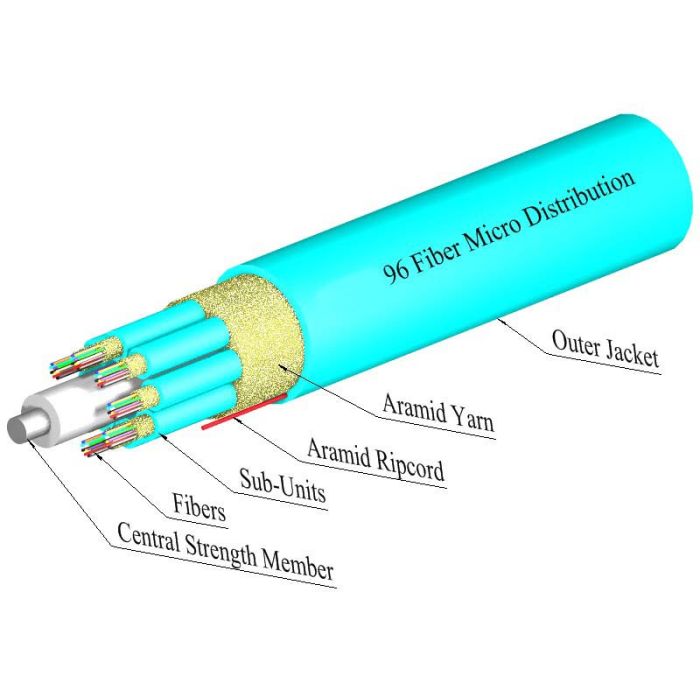

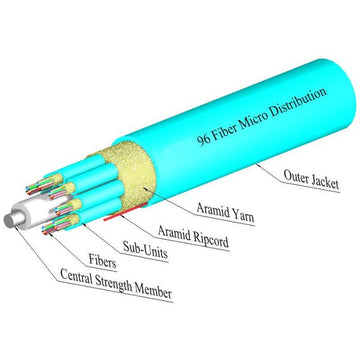

The TLC Micro-Distribution Cable is designed for high-density indoor networking environments where space is at a premium. Featuring 96 fibers in a 50/125um OM4 multimode configuration, this cable utilizes ClearCurve bend-insensitive fiber to ensure reliable performance even in confined spaces with tight routing requirements.
This cable is constructed with a plenum-rated jacket, making it suitable for installation in air-handling spaces. The 96-fiber count is organized into subunits of 12 fibers for easier identification and management. Its compact design is optimized for data centers and premise network backbones.
Key Features
-
High-Density Design
Compact construction allows for more fiber connections within limited raceway and conduit space. -
OM4 Multimode Fiber
Supports high-bandwidth 10G, 40G, and 100G Ethernet applications over longer distances. -
ClearCurve Technology
Features bend-insensitive fiber properties to minimize signal loss during tight bends or cable management. -
Plenum Rated
Jacket material is fire-retardant and smoke-compliant for safe installation in plenum air-handling environments. -
Subunit Organization
Fibers are grouped in 12-fiber subunits, streamlining the breakout and termination process for technicians. -
Indoor Suitability
Engineered specifically for premise networks and data center cable routing.
Applications
- Data center backbones
- Premise network distribution
- High-density fiber-to-the-desk routing
- Building riser and plenum cable pathways
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 96 |
| Fiber Type | Multimode 50/125um (OM4) |
| Jacket Rating | Plenum |
| Fiber Technology | ClearCurve |
| Construction | Micro-Distribution |
| Subunit Size | 12 Fibers |
| Color | Aqua |
Frequently Asked Questions
What is the fiber count for this cable?
This cable contains 96 fibers.
Is this cable suitable for outdoor use?
No, this is an indoor-rated plenum cable designed for use in premise environments.
How are the 96 fibers managed?
The fibers are grouped into organized subunits of 12 fibers each.
What does OM4 mean?
OM4 refers to laser-optimized 50/125um multimode fiber capable of supporting high-speed data transmission rates like 10G and above.
Is this cable compatible with tight spaces?
Yes, the micro-distribution design and ClearCurve bend-insensitive technology make it ideal for high-density, constrained environments.
