Overview

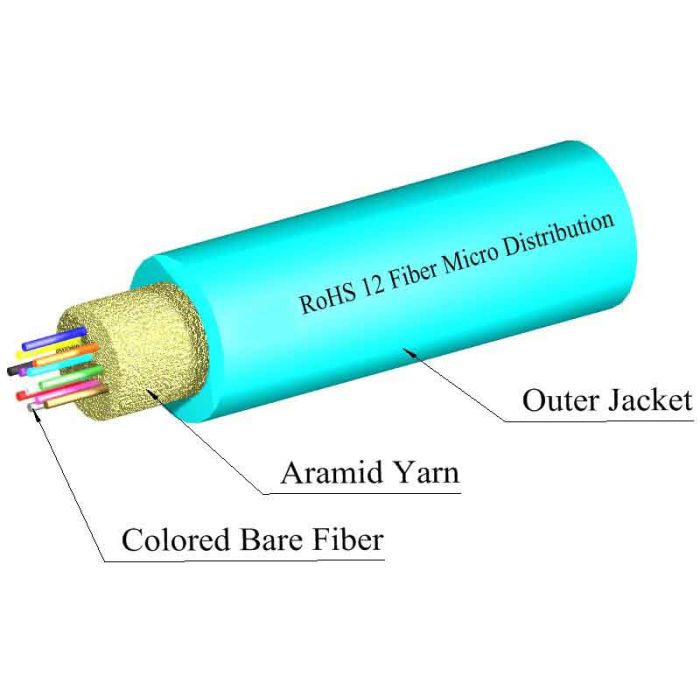

The TLC Micro-Distribution Cable is engineered for high-density indoor environments where space is at a premium. Featuring 12-fiber construction with ClearCurve multimode 50/125um OM3 fiber, this cable is designed to provide robust connectivity in data centers and premise network installations.
This cable includes aluminum interlocking armor, providing enhanced physical protection for the internal fibers without requiring conduit. The plenum-rated jacket ensures compliance with stringent fire safety codes for installations in air-handling spaces.
Key Features
-
12-Fiber Count
Provides sufficient density for high-capacity data center backbone links. -
OM3 ClearCurve Multimode
Optimized for laser-based 10GbE transmission and high bending performance. -
Aluminum Interlocking Armor
Offers superior crush resistance and physical protection against rodents and mechanical impact. -
Plenum Rated
Jacket material meets safety standards for installation in ducts and plenums. -
Micro-Distribution Design
Compact profile saves critical pathway space compared to standard distribution cables. -
Consistent Core Size
50/125um diameter ensures compatibility with standard multimode transceivers.
Applications
- Data centers
- Premise networks
- Plenum-rated indoor spaces
- High-density cable management environments
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | TLC |
| Fiber Count | 12 |
| Fiber Type | Multimode (OM3) |
| Core Size | 50/125um |
| Armor Type | Aluminum Interlocking Armor |
| Jacket Rating | Plenum |
| Cable Color | Aqua |
Frequently Asked Questions
What is the primary benefit of the aluminum interlocking armor?
The armor provides high crush resistance and protection against mechanical damage, eliminating the need for conduit installation.
Is this cable suitable for outdoor use?
No, this cable is designed for indoor plenum-rated environments.
What is the fiber type?
This cable uses OM3 ClearCurve 50/125um multimode fiber.
What is the jacket rating?
The cable features a plenum-rated jacket, making it suitable for use in air-handling spaces.
How are the fibers organized in this cable?
This is a 12-fiber micro-distribution style cable.
